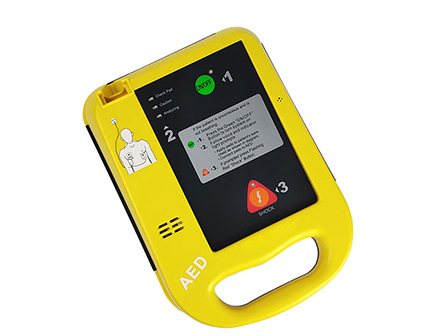

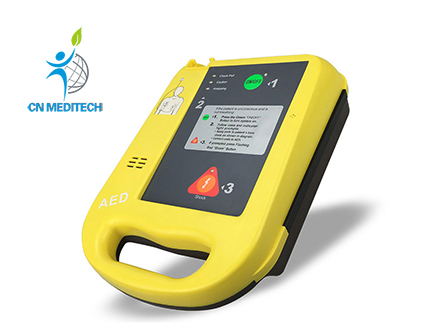

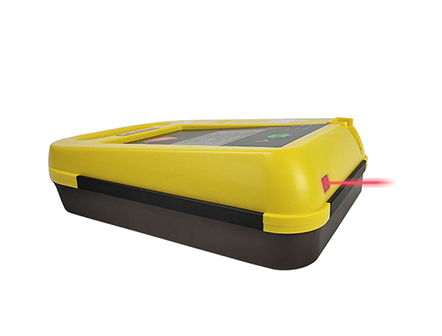

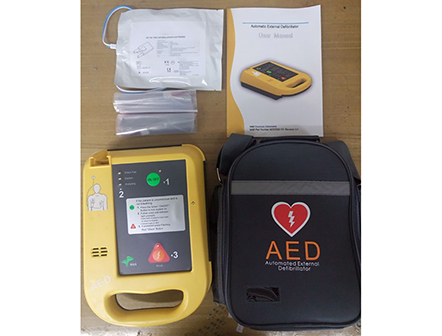

Medical Automatic External Defibrillator Machine Emergency AED

Model:CNME011308

Description:

CNME011308 is a portable model, which can be equipped at home, in public places, or in the hospitals. It's easy and convenient to use when give first-aid to patient. Meanwhile, it has the function of automatic analyzing patient's ECG data, and then takes corresponding defibrillation energy level according to patient's current situation, which has greatly improved success rate, and maximum reduced damage to patient's heart.

Features:

Three-step defibrillator process

Two-button operation

Extensive voice and visual prompts for the operator

Biphasic energy output

Lock-out protection to prevent inadvertent defibrillation

Specifications:

Output	Biphasic Truncated exponential
Energy Sequence	150, 150, 200J
Charge Time	8 sec. to 150J 10sec. to 200J(New battery)
Analysis Time	9 sec.
Audible Prompts	20 audible prompts
Visual Prompts	LED prompts
Controls	Two buttons-On/Off, Shock
Output Energy Accuracy	±15% into any impedance from 25 to 175Ω
Output disabled when the patient impedance is outside limits	20Ω to 200Ω
Part No Non-rechargeable	CR123A-4*2 12V d.c. 3.0Ah
Capacity	100 discharges at 200 Ioules or 120 discharges at 150 Joules
Shelf Life(25ºC±15ºC)	10 years(5 years storage + 5 years standby) 5 years standby (after installation)
