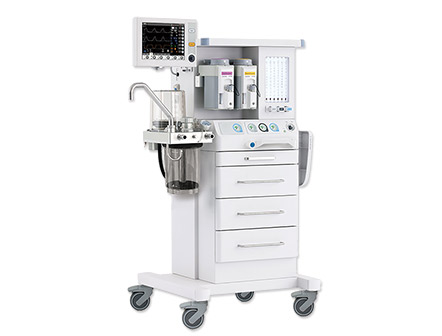

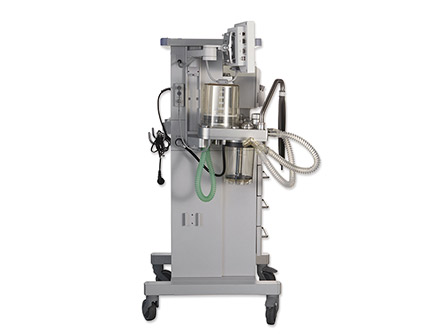

Breathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two Vaporizer
  • Breathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two Vaporizer
  • Breathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two Vaporizer
Breathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two VaporizerBreathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two Vaporizer

Breathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two Vaporizer

Model: CNME010307

Description:
PCV and SIMV+PS modes ensure flexibility in ventilation, machine doable for both pediatric and adult operation
Optional monitoring functions, CO2 and anesthetic gas
Flowmeter provides minimum 25% concentration of oxygen in O2 /N2O mixture
Breathing system easy to remove and clean, fully autoclavable, optional CO2 bypass
Enhances usability with auxiliary oxygen, suction, auxiliary power source, monitor arm, infusion pump etc.
CE marked, meets EU clinical requirement


Technical Specification:

Physical & Environment SpecificationsDimensions(W×H×D): 704mm × 1403mm × 750mm(without YOKE)
Weight: 100kg (basic unit)
Operation Temperature: +10~+40°C
Operation Humidity: ≤80% (noncondensing)
Storage Temperature: -20~+60°C
Storage Humidity: ≤95% (noncondensing)
Electrical Specifications Mains: 100~240V AC, 50/60Hz
Battery: 24V 4Ah, minimum 120 min
Outlets: 3 on back, 1.5A individual
Pneumatic Specifications Gas Supply: Air, O2, N2O; 280kPa ~ 600kPa
Flowmeters: O2  Range: 0~1L/min; 1~10L/min
N2O Range: 0~1L/min; 1~10L/min Air Range: 0~1L/min; 1~12L/min Auxiliary O2 Range: 0 ~12 L/min
Flowmeter backlight
Gas System: Oxygen supply failure alarm
Oxygen supply failure protection
O2 flush: 25~75L/min
ACGO: Optional auxiliary common gas outlet
AGSS: Optional anesthetic gas scavenging system
Breathing System Specifications Operational Modes: Closed, Semi-closed, Semi- open
CO2 Canister: 2 Loose fill (3L) or 2 prepacks,
optional single canister
APL Range: Spontaneous breathing (SP) - 70 cmH2O
Material: Autoclavable (except O2 cell and mechanical pressure gauge)
Heating system: Optional
CO2 bypass: Optional
Ventilator Specifications

Driven Mode: Pneumatically driven and electronically controlled
Patient Types: Adult and Pediatric populations weighing above 2kg
Ventilation Modes: IPPV, PCV, SIMV+PS, PS and Manual
Setting Modes: Touch key & navigator wheel knob
Tidal Volume: 20~1500ml
Ventilation Frequency: 4~100bpm
I:E Ratio: 4:1~1:8
Pressure (inspired) Range: 5~70cmH2O
Pressure (support) Range: 3~50cmH2O
PEEP: Off,3~30 cmH2O
Tslope: 0~2s
Inspiratory Plateau: Off, 5%~60%Ti
Trigger Sensitivity: 1~15L/min
Compensation: Compliance and leakage compensation, fresh gas compensation and altitude compensation
Ventilator SpecificationsDisplay: 10.4" TFT color screen
Pressure: Paw, Ppeak, Pplat, Pmean, PEEP
Volumes: MV, Vt, Freq
Gas: FiO2, optional: CO2, AG, MAC
Graph Display: P-t, F-t, P-V, F-V and optional CO2-t
Alarm: High Airway Pressure/Low Airway Pressure
Sustained airway pressure
High Minute Volume/Low Minute Volume
High FiO2/Low FiO2
High Breath Rate
O2 Supply failure
Power failure
Apnea Alarm
Alarm Silence: 110 seconds
 Vaporizer Support two vaporizers
Agent: Halothane, Enflurane, Isoflurane, Sevoflurane
Installation Mode: Selectatec with interlock,
optional standby vaporizer parking holder
Filling Type: Pour Fill, Key Fill, Quik-Fil


Product Name: Breathing System 10.4 TFT Color Screen Ventilation Anesthesia Machine with Two Vaporizer
*
