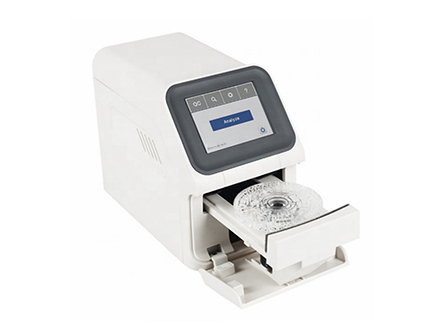

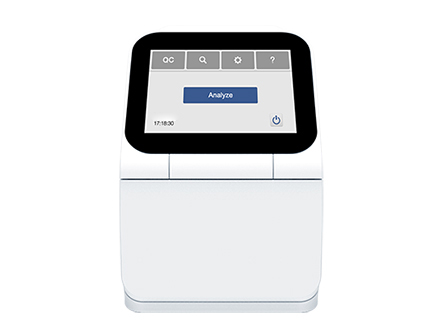

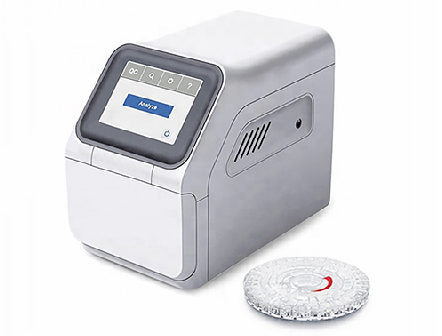

On-site Blood Chemistry Analyzer Fully Automated Clinical Chemistry Analyzer

Model:CNME030431

Description:

Smallest ever(2.2kg)yet powerful enough, the CNME030431 delivers reliable diagnostic information,the intelligent innovation refining an efficient and accurate medical experience to healthcare professionals.

Specifications:

Sample Type	Whole blood(lithium-heparinized), Plasma(lithium-heparinized), Serum
Sample Size	100μl
Time to Results	About 10 minutes
Parameters	Up to 17 parameters in one test, 32 parameters configured into 9 profiles
Reagent Disc	Disposable, prepackaged with self-contained lyophilized reagent
Calibration	Automatic self-calibration by scanning QR Code on the aluminum foil pouch
Quality Control	Built-in Realtime Quality Control(RQC) system
User Interface	Full-color touch screen
Connection Interfaces	WLAN, USB port, Ethernet interface, compatible with HIS
Print Mode	Optional external thermal printer,Medical Data Management Platform, HIS
Reaction Temperature	37ºC±0.1ºC
Data Capacity	More than 50,000 sets of patient and quality control data
Operation Environment	Temperature 10-30ºC, Humidity 40-85%
Power Requirement	AC 100V-240V, 50-60HZ
Dimensions	21(L)12.5(W)17.5(H)cm
Weight	2.3kg

Easy to use:

1.Fully automated system-no special operating skills required
2.4.3 inch capacitive touch screen
3.0.1cc whole blood,serum or plasma
4.Barcoded prefabricated calibration information
5.LIS compatible, no need to manually enter patient information
6.Results can be printed on a hard copy via printer or transferred electronically, e.g. to a work station
7.Ability to print reports with your practice logo by installing the CNMEDITECH medical data management platform

Quick results:

From sample to complete results in 3 simple steps in approximately 13 minutes

Precise measurements:

Advanced technology ensures precise results
1.Microfluidic discs with pre-installed reagent beads ensure accurate analysis of blood samples and reagents
2.Stable measurement optics include a troboscopic xenon lamp, a wavelength selection system, and a multiple-wavelength detector
3.Integrated quality control software monitors the entire process in real time (ensuring consistent analysis of blood samples, reagents, microfluidic discs and chemistry analyzer)
