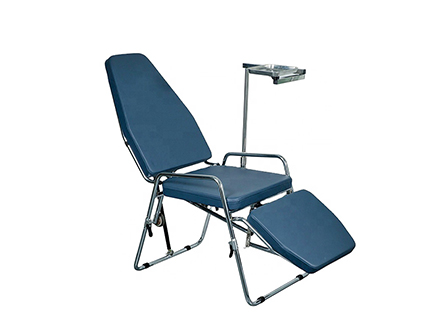

Portable Folding Dental Patient Chair

Model: CNME1401S1

Features:

1.It allows setting up the chair within 45 seconds, quick and convenient.

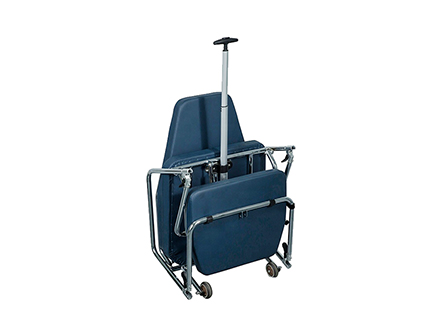

2.After folding, the chair can be easily pulled with the telescopic handle.
3.Surface of chair is made of microfiber leather, durable and comfortable.
4.Smooth backrest adjustment system and leg rest part can automatic adjust together.
5.Frame of chair made by SUS304 stainless steel, light weight, easy for carry.
6.The height can be adjust by hydraulic lever, operation comfortably.

Specifications:

Model	CNME1401S1
Unfolded size	1640550600mm
Size including instrument tray	1640600 (600-1000mm), height of instrument tray is adjustable
Chair backrest angle	100°-180°adjustable (controllable hydraulic lever)
Chair frame leg angle	145°-180°adjustable (coordinated with the backrest linkage)
Folding size	600mm450mm800mm
Max. height with tie rod	600mm450mm1100mm
Max. affordable weight	200kg
Packing size	890mm630mm410mm
GW	22KG
Cover material	Microfiber leather
Frame material	Stainless steel 304, with special surface treatment
Instrument tray material	Stainless steel 304
Spittoon material	Stainless steel 304

Optional accessories:

Foldable dentist stool(include the carry bag)

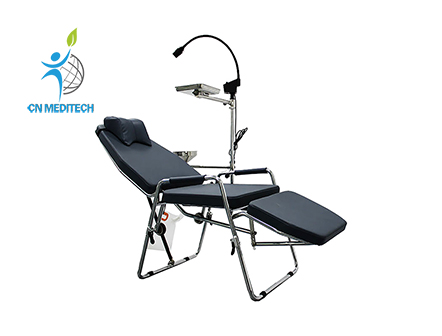

Portable operation light Specification:

Input power	90-250V 50/60Hz AC
Lamp power	5W(LED)
Lamp life	≥ 50,000 hours
Color temperature	4500K ± 500K
Operation zone	70x70mm±10%
Gooseneck tube length	550mm
