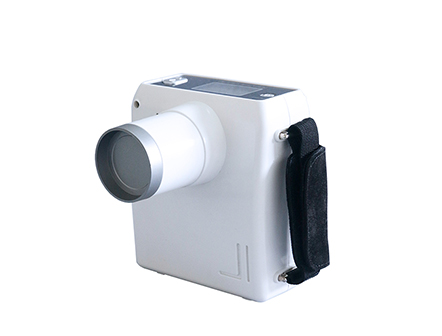

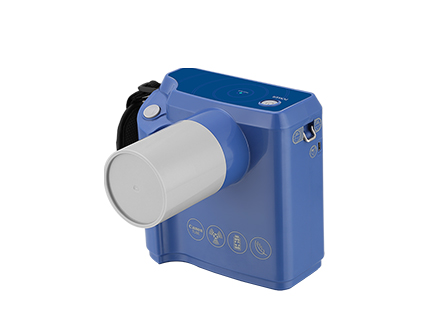

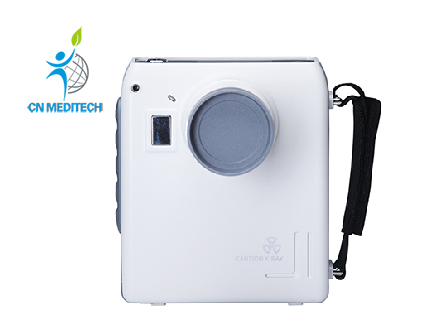

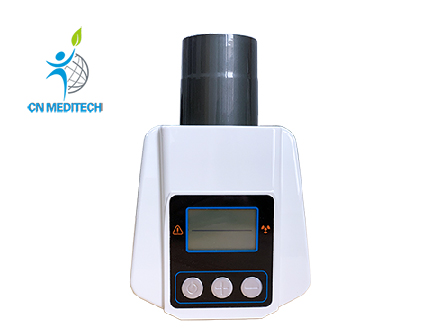

Model:CNME140211/CNME140212/CNME140213A/CNME140213B
Features:
1.Compact & single handed operational device
2.Lightweight, portable, excellent shape ratio of length, width and height

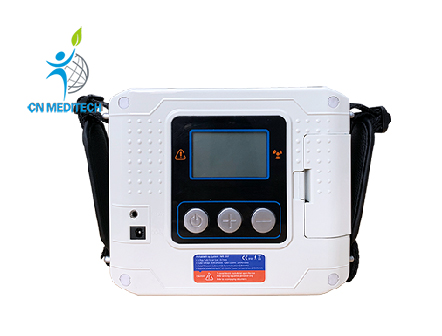

3.Ultra-large clear LCD display, high-definition imaging, high contrast
4.Minimum X-ray exposure, ultra-low radiation,protect operators and patients from dispersed radiation
5.Imported components, long life, convenient replacement of batteries
6.Automatic error reporting for normal faults in boot-up self-check
7.Compatible with all digital sensors on the market
Specifications:
| Item | CNME140211 | CNME140212 | CNME140213A | CNME140213B |
Tube current | 2mA | |||
Total filtration | 1.5mmAL | |||
Tube voltage | 70kV | 60kV | ||
Target angle | 12.5° | 16° | ||
Exposure time setting | 0.04s-2.0s | 0.05-1.35sec | ||
| Tube focal spot | 0.4mm | 0.7mm | ||
Battery | Built-in lithium battery 19V | External lithium battery 16.8V | Built-in lithium battery 25.2V | |
Size of main body | 175x150x150mm | 139x150x165mm | 144.5x222.5x195mm | 175.6x150.3x149mm |
Packing Size (W)x(D)x(H) | 370x272x250mm | 365x275x255mm | 385x275x255mm | 365x275x255mm |
| Net Weight | 1.8kg | 1.8kg | 1.8kg | 1.8kg |
Gross Weight | 6kg | 4.65kg | 4.9kg | 5kg |
Package details:
GW:6Kgs,Packing Size:365mm*275mm*255mm.
