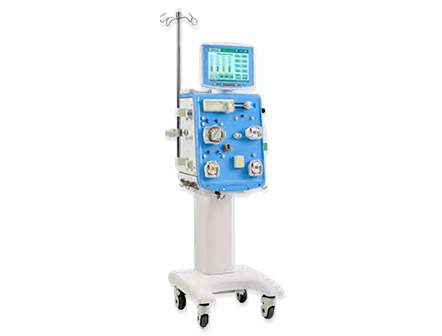

Model: CNME040108
Description:
Five Pumps, including one Heparin Pump, with three scales, 7 treatment modes(CVVHD, CVVH, CVVHDF, SCUF, HP, PE, PA, RCA-regional citrate anticoagulation, Replacement fluid dual channel input)
Flexibility:
1.Convenient one-button prime
One button mode switch and one button prime, more convenient for clinical treatment.
2.Multiple dilution modes of substitution fluid
Adopt various methods for substitution fluid such as the pre-dilution, post- dilution, pre -post mix dilution. One button switch dilution method, do not need to change the connection of tubing manually.
Can set the flow of pre -post -dilution substitution fluid.
3.Multi-functional infusion pump
The multi-functional infusion pump can be used for bolus injection of heparin, calcium chloride and ect. and recognize the syringe size automatically, such as 10ml,20ml,30ml and 50ml.
4.safety movement
Small blind field of vision to ensure safety of equipment movement.
0 parts failure for 120KM movement test.
5.Guide for tubing installation
Easy operation for tubing installation, the system will guide installation with pictures and text.
6.Ergonomic design, make the machines serve people
Rotatable big touch screen operation system, to observe and operate from different angles, to meet the requirement for rapid response under different scenarios.
7.Reliable fluid change management of substitution fluid and waste fluid
The maximum range of weighing scale is 30kg, and can hang different fluid bags with higher accuracy of fluid meter, which can decrease the workload of medical care.
Unique design for foolproof fluid change, easy operation, high safety.
Technical Specifications:
Basic Information | |
Dimension | Height 1720mm/Width 635mm/Thickness 578mm |
Weight | About 75kg |
Electrical Parameters | Voltage ~110/220V Frequency 50/60Hz Power 500VA Backup Battery Capacity 2*12V/4AH |
Pressure Monitoring | |
Venous Pressure Monitoring(Vp) | -500mmHg~+700mmHg Accuracy: ±5mmHg |
Arterial Pressure Monitoring(Ap) | -500mmHg~+700mmHg Accuracy: ±5mmHg |
Transmembrane Pressure Monitoring(Tmp) | -500mmHg~+700mmHg Accuracy: ±5mmHg |
Primary Membrane External Pressure Monitoring(Pm1) | -500mmHg~+700mmHg Accuracy: ±5mmHg |
Secondary Membrane Pressure Monitoring(Pm2) | -500mmHg~+700mmHg Accuracy: ±5mmHg |
Liquid Balance Control | |
Scale Number | 4 |
Rehydration Scale | 0kg~30kg Accuracy: ±5g or ±0.1% |
Waste Liquid Scale | 0kg~30kg Accuracy: ±5g or ±0.1% |
Auxiliary Rehydration Scale I | 0kg~12kg Accuracy: ±5g or ±0.1% |
Auxiliary Rehydration Scale I | 0kg~12kg Accuracy: ±5g or ±0.1% |
Flow Monitoring | |
Blood pump flow(BP) | 0mL/min, 30mL/min~600mL/min Accuracy: set value±10% |
LP1 | 0mL/min, 1mL/min~250mL/min Accuracy: ±0.1mL/min or ±5% of set value |
Waste Liquid Pump Flow(UFP) | 0mL/min, 1mL/min~250mL/min Accuracy: ±0.1mL/min or ±5% of set value |
LP2 | 0mL/min, 1mL/min~250mL/min Accuracy: ±0.1mL/min or ±5% of set value |
Function Pump Flow(FP) | 0mL/min, 1mL/min~250mL/min Accuracy: ±0.1mL/min or ±5% of set value |
Infusion pump flow | Flow Adjustable Range: 0mL/h~10mL/h Error Range: ±0.2mL/h Rapid Injection Flow: 10mL/h~2000mL/h Syringe Specification: 10mL/20mL/30mL/50mL |
Dehydration Error | ≤±20mL/h |
Liquid Balance Control | ≤100mL |
Substitution fluid flow temperature control | |
Control Range | 33ºC~40ºC |
Accuracy | Control error±1ºC |
Safety Monitoring | |
Blood Leakage Monitoring | ≤0.35mL/min(HCT32%) |
Air Monitoring | >0.02mL bubbles |
