Download Full Catalogue
1.Anti-Online (national invention patent) long-acting slow-release sterilization patented material.
2.Medical grade H14 filter loaded with 5% Anti-Online sterilized material.
3.One-time sterilization efficiency 99.95%.
4.UVC-Max (national invention patent) deep ultraviolet LED disinfection module.
5.Compared with the traditional mercury lamp tube,it can save more than 90% and the life span is more than 20,000 hours.
6.No mercury.No ozone.Without high temperature.No risk of lamp breaking.
Stomatology, ophthalmology, otolaryngology, ENT, and other departments, doctors and patients are in close contact, patients cannot take protective measures, and there is a potential cross-infection risk between doctors and patients.
|Rated voltage||220V/50Hz||Rated power||125W|
|Noise||25-55dB(A)||One-time disinfection efficiency||>99.9%|
|Motor||Shibaura Brushless DC||Control method||5-speed speed regulation+remote control|
|Applicable volume||<80m³||Air volume||800m³/h|
|Product Size||420*420*850mm||Packaging size||450*450*900mm|
|Product material||Carbon steel+paint||Weight||35kg|
|Third-party test data|
|One time removal rate||810m³/h||UV leakage||<1Mw/cm²|
|Ozone leakage||0.003 mg/m³||Staphylococcus albicans||60min 100%|
|Natural airborne bacteria||60min 99%||TypeII environmental standard||0.3CFU(15min)|
|TVOC leakage||<0.01 mg/m³||0.3μm One time removal rate||>99.9%|
|Staphylococcus aureus One time removal rate||>99.9%||Escherichia coli One time removal rate||>99.9%|
|Candida albicans One time removal rate||>99.9%||Aspergillus niger One time removal rate||>99.9%|

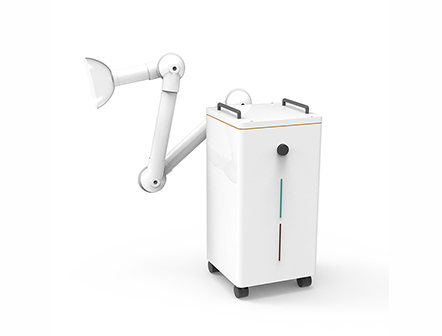

The breath, aerosol, blood droplets, mixture of liquid medicine, etc. exhaled by patients in the treatment process are quickly collected. Meanwhile, a local negative pressure isolation zone is established between patients and medical staff to thoroughly disinfect and sterilize the collected gas, so as to avoid cross-infection between doctors and patients.
