Model:CNME030517
Analyzer Introduction:

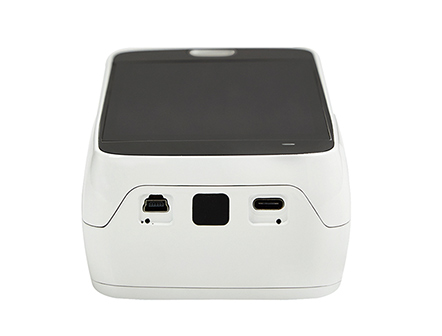

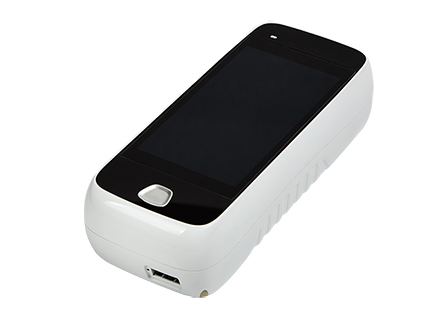

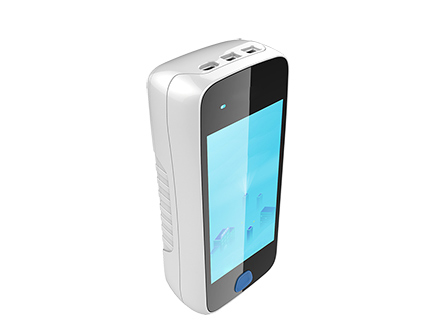

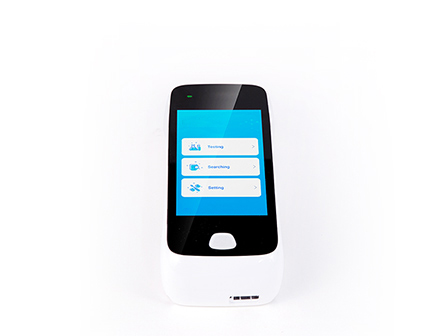

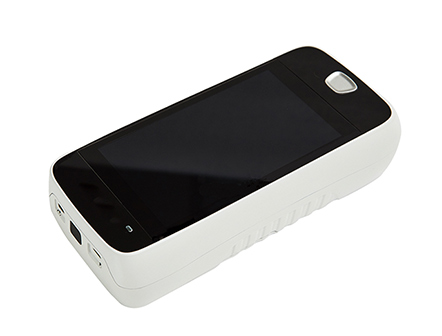

CNME030517 Dry Fluorescence Immunoassay Analyzer is clinically used in conjunction with specific dry reagents for fluorescence immunochromatography detection of human samples.
It has been widely used in medical and health departments at different levels. It is an indispensable detection instrument for clinical examination. The basic principle of this product is to transform the fluorescent signal into a digital signal and calculate the concentration by the data processing system.
Features:
Method | Time-resolved Fluorescence Immunoassay (TRFIA) |
Sample | Serum/Plasma/Whole Blood/Urine |
Weight | 600g |
Dimensions | 191mm×84.5mm×45mm (L×W×H) |
Screen | 5.0 inch touch screen |
Data Storage | 50000 |
Battery | Built-in lithium batter y (super standby time) |
Communication | RS232, Type-C USB, WIFI, Bluetooth and 4G |
Parameters:
Test speed | 10s |
Sample volume | 5-200μl |
Wavelength range | 610±5nm |
Working temperature | 10ºC-35ºC |
Working humidity | ≤70% |
Data Storage | 50000 test results |
Standby battery | 72hrs |
Power Supply | Built-in Battery,AC 100~240V,50-60Hz±3 |
