Full HD Laparoscopic Endoscope Camera Laparoscopic Laparoscopy Tower

Model:CNME05R series

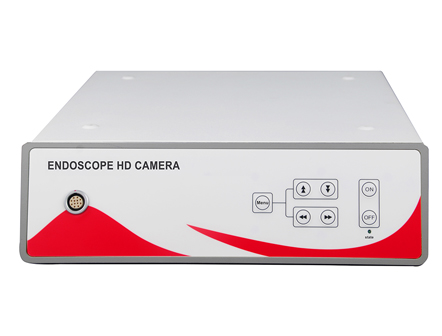

Medical Full HD endoscope camera

Functions and advantages:

1.Intelligent digital full HD 1000lines HD-1080P, Effective pixels is 1920(H)*1080(V).

2.Full intelligent automatic white balance with one click(White balance and freeze buttons on the camera head)

3 Solving electromagnetic interference of energy platform during operation(such as ultrasonic knife, plasma knife, electrosurgical unit, etc.)

4.Camera head waterproof: IP8X, to prevent water from entering the camera head during the surgery.

5.Extinction speed is less than 0.2s, which can solve the operation delay of surgical images and reduce visual fatigue.

Technical parameters:

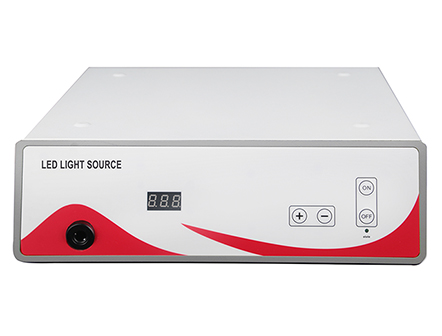

LED medical cold light source

Imported key component: adopted imported medical LED, strong tability, good anti-seismic property.
Long service life: working time more than 20,000~40,000 hours, minimizing the need to replace the bulb,cost saving.
Colour temperature purity: natural light 6500k.
High brightness:490,000Lux,great transparency,excellent color rendering,great three-dimensional sense of the surgery.
Good compatibility: international standard light guide cable, to connect with most of brands, like Storz, Olympus, Wolf etc.


Technical parameters:

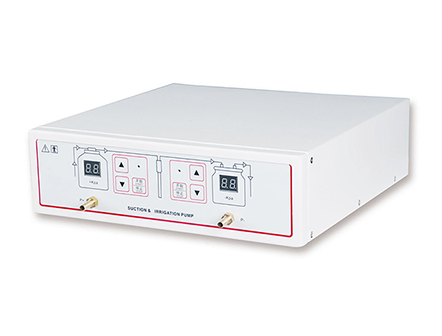

Endoscopy pump

Products introduction:
Washing and suction the effluent or fragment in the enterocoelia surgery

Function Characteristic:
Irrigate and suction alternately
Large flow
Adjusted irrigate and suction pressure as the need
Reflux prevention to prevent the effluent into the pump

Technical Parameters:

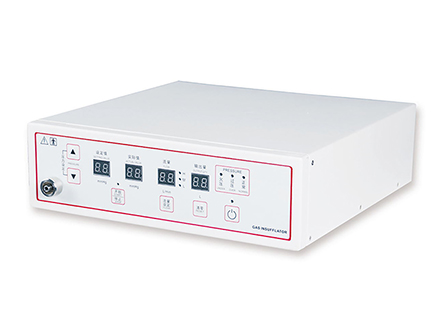

CO2 Insufflator

Function Characteristic:
Use MOTORALA pressure sensor, three-way pressure observe and control,large flow air supply.Long life,safe and reliable.
1.Fully automatic,quiet operation
2.3 level flow rate
3.Automatic safety alarm function
4.Pulse gas supply design for great safety
5.Dual gas filtering and decompression design

Technical Parameters:

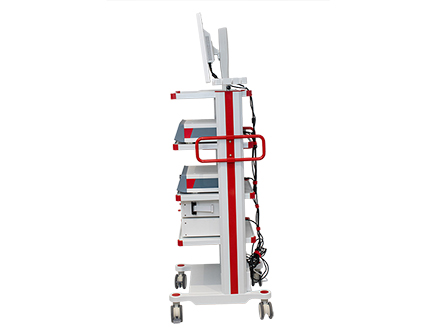

Trolley

Material: metal;
Suitable robust and corrosion resistant trolley with five-storey shelves with suitable distance between the shelves.
The trolley is provided with castors and two of the castors are lockable.

Medical Monitor

24" HD Medical screen,
Dimension ratio: 16:9
Input signal: DVI, VGA, CVBS
Power supply:AC100~240V 50/60HZ
Power:40VA
Horizontal Resolution:1920*1080

Electrosurgical unit

5 working modes
Monopolar Cut(Max. output power:400W)
Monopolar Coag(Max. output power:110W)
Bipolar Coag(Max. output power:50W)

Full HD video recorder

Recording format: MP4;
Recording interface: USB disk and Removable hard disk;
Extermal mobile HDD: MAX 2T
Input signal: BNC,HDMI
Output signal: HDMI
