Model:CNME020103
Description:

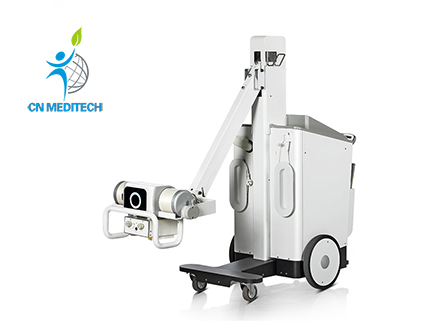

CNME020103 x ray machine is an economic and practical mobile digital x-ray system, can meet most needs of hospital digital radiography.
Technical datas:
Generator | Power | 32kw | 40kw |
KVp range | 40-125 kV | 40-150kv |
mA range | 10-400mA | 10-500mA |
mAs range | 0.1-125 mAs | 0.1~250mAs |
X-ray tube | Anode heat content | 140KHu | 150KHu |
Flat panel detector | X-ray sensitive | 14*17inch |
Physical specification | Weight | 220kg |
Height | 149cm |
Width | 65cm |
Column rotation range | / |
Tube tilting angle | ±90° |
Tube vertical rotation angle | -30°~+90° |
Collimator axial rotation | ±360° |
SID | 507~2000mm |
