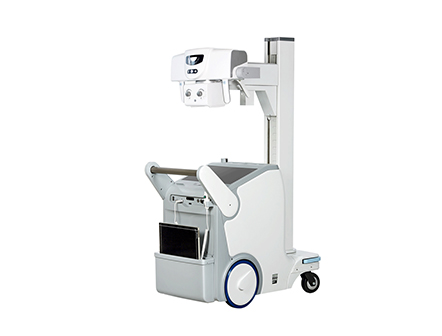

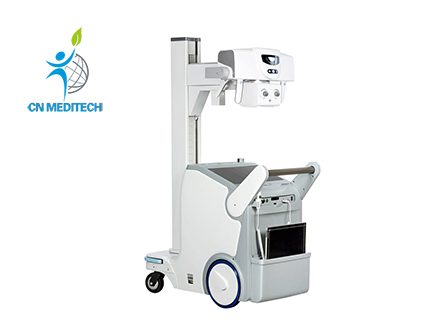

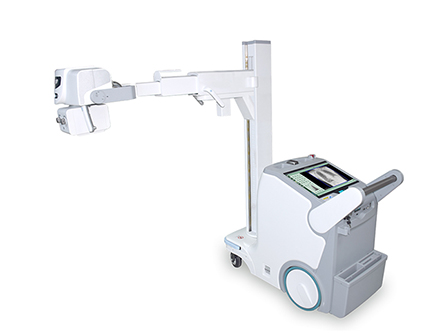

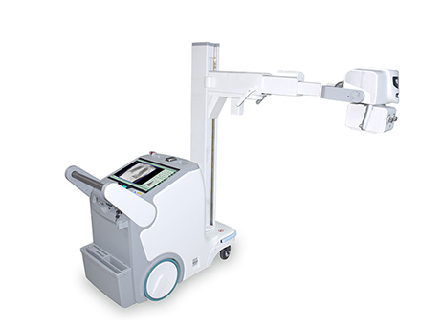

Mobile Digital Radiography Imaging System X Ray Digital Machine

Model:CNME020101


Description:

CNME020101 adopts the leading integrated design,can be widely used in radiology, orthopedics,medical examination, emergency room,intensive care unit,operating room,neonatal department, to meet the demand of digital radiography in the hospital.


Specifications:

Main Components
Technical Specification
Model
CNME020101
-32KW
CNME020101
-45KW
CNME020101
-50KW
Flat Panel Detector
X-ray Sensitive Area
14*17/17*17 inch
Generator
Standard Power
32KW
45KW
50KW
KV Range
40-150KV
MA Range
10-400MA
10-560MA
10-630MA
MAS Range
0.1-250MAS
0.1-360MAS
0.1-360MAS
X-ray Tube
Anode Heat Content
150KHU
300KHU
150KHU
Physical Specification
Weight
380kg
Height
184cm
Width
55cm
Column Rotation Range
±315°
Tube Tilting Angle
±180°
Tube Vertical Rotation Angle
-30°-+90°
Telescopic Arm Length Range
730-1250mm
SID
610-1830mm
Lithium Battery
Battery Capacity
46.8V, 18.9Ah
