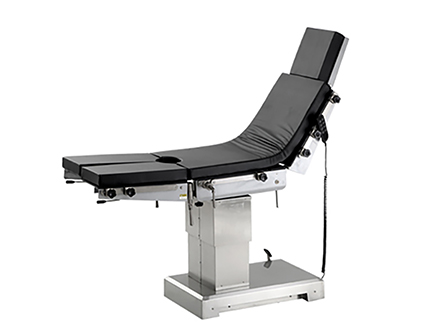

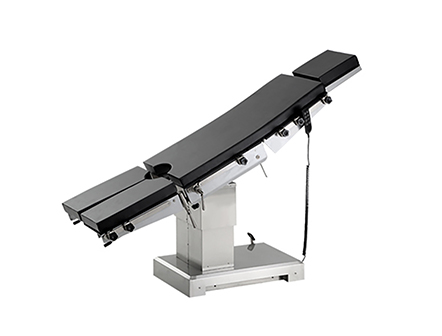

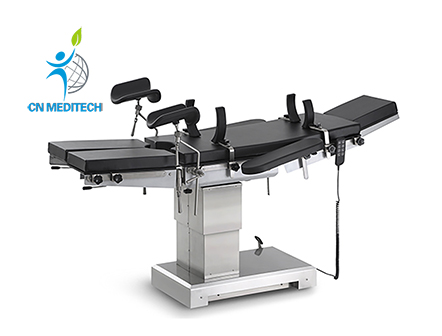

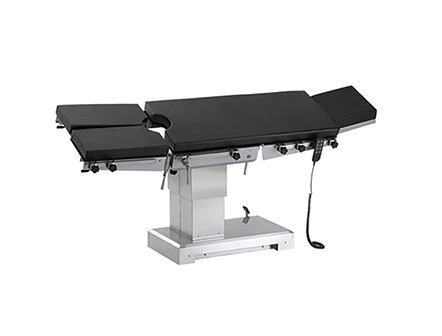

Gynecology Urology Ent Neurosurgery Surgical Electric Operating Table

Model:CNME010802A

Description:

This electric operating table primarily for the purposes of medical institutions for surgical use, it is suitable for head, neck,chest, abdomen, perineum, limbs and other surgery, gynecology, urology, ENT, neurosurgery and other surgical needs. All its actions are driven by motors.
The operating table is made up of base, Lifting mechanism, back board, seat board, leg board and other components. It uses low voltage DC motors to drive to be safe and reliable.

Specifications:

Size of the table top	2000mm*500mm
Lifting range	Min≤550mm Max≥800mm
Tabletop lean forward	≥20°
Tabletop lean backward	≥25°
Tabletop lean left and right	≥20°
Backboard folding up	≥45°
Backboard folding down	≥20°
Headboard folding up	≥30°
Headboard folding down	≥90°
Leg board folding down	≥90°
Leg board open	≥90°
Waist board rising	≥80mm
Supply voltage	220V±22V
Frequency	50Hz±1Hz
Input power	600VA
Weight	180KG
Working mode	Short-term load continuous operation
Equipment category	Non AP/APG equipment
Enclosure rating	IPX4
Equipment safety classification	I type B
Fuse models and specifications	T3AL250V(5*20mm)
