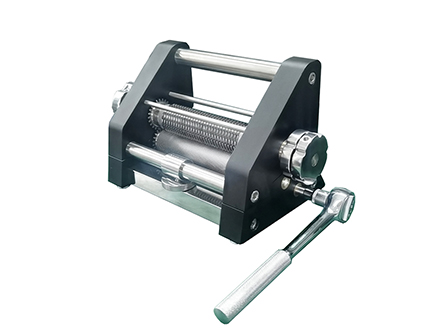

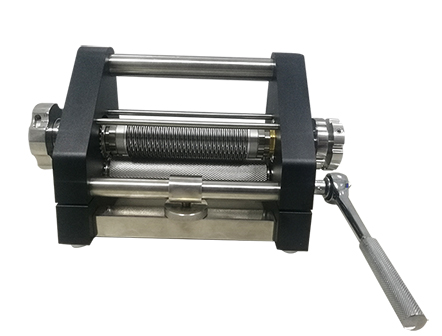

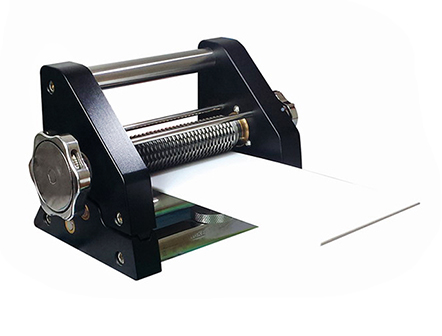

High Quality Surgical Burns Skin Graft Mesher

Model:CNME-SGM1

Standard Components List:

Product Name	Components	Quantity	Unit
Skin Graft Mesher	Main frame	1	Set
	Continuous Feed Roller	1	Pc
	Adjustable Expansion Roller	1	Pc
	Ratchet Handle	1	Pc
	Skin Graft Carriers	2	Bag

Specifications:

Product Name	Skin Graft Mesher
Machine Function	Make reticular skin graft
Function Specifications	ratio of reticular skin graft from 1:1 to 1:6,even larger
Distance between the two hole	2mm
Specification of skin graft can be processed	Width: ≥130mm Length: Unlimited Thickness:Unlimited
Operation Method of Machine	Manual
Sterilization Method	pre-vacuum and gravity displacement steam sterilization or low temperature plasma sterilization, etc.
Comsumables	we suggest skin graft carrier for single use

Feature:

The design of this machine is the technology that making various ratio reticular skin grafts perfectly by one machine. There is no need change the expansion roller and different ratio skin graft carrier. The width of the treated skin graft can be much larger than traditional skin graft mesher, and the length is unlimited.

Packaging details:

Carton size:40X30X30cm,G.W.:12kg
