12.1′ ′ /15′ ′ Color LCD Screen Modular Patient Monitor

Model:CNME0101M1/CNME0101M1plus

Features:

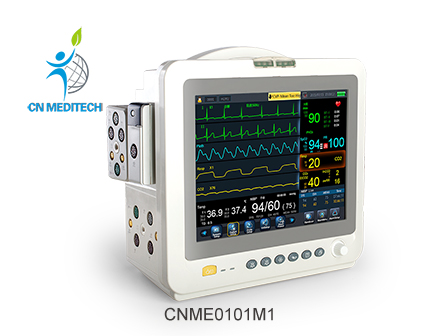

CNME0101M1:12.1" color LCD screen

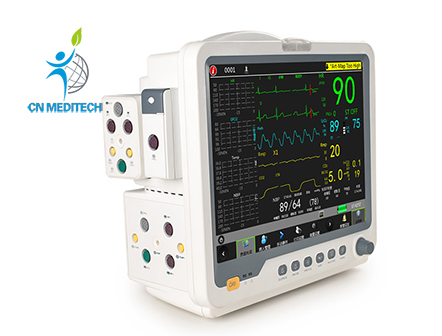

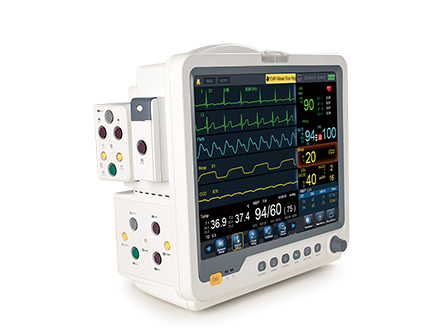

CNME0101M1plus:15" color LCD screen

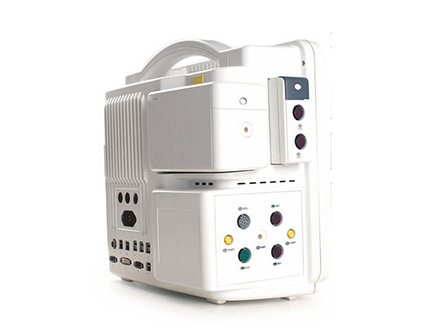

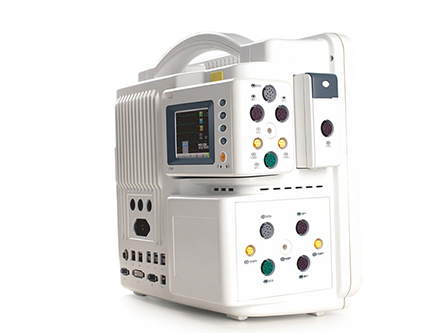

Resolution:800*600, Parameter plug-in box

Support Thermal Recorder ,HD output;

Easy connecting with optional central monitoring system;

Multi 6-leads ECG display, Big font interface, OxyCRG interface, Trend Graphs interface;

Built-in rechargeable lithium battery;

Optional accessories for adult, pediatrics & neonate ISO, CE approved

Specifications:

Standard parameters
3/5-Lead ECG, CNMEDITECH SpO2, NIBP, RESP, 2-Temp, PR
Optional
EtCO2,2-IBP,Touchscreen,Thermal Recorder,Wlan/Wireless accessory,12-leads ECG,compatible Spo2,Anesthetic Gas
ECG
Number of Leads	3 or 5 leads
User Selectable	I,II,III,aVR,aVL,aVF,V(5 Lead) I,II or III(3 lead) I,II,III,aVR,aVL,aVF,V,V1~V6(12lead)
Range	adult/neo/ped 15-350bpm
CMRR	DIG>90dB MON>100dB SUR>100dB
Arrhythmia Analysis	13 kinds
SPO2
Range	0 to 100%
Resolution	1%
Accuracy	70% to 99% range ±2% 0 to 69%; undefined
Method	Dual wavelength LED
Respiration specification
Mode	RA-LL Impedance method
Bandwidth	0.1 to 2.5 Hz
Resolution	1 bpm
Accuracy	2 bpm
Pulse Rate
Measurement Range	40 to 240 bpm
Resolution	1 bpm
Accuracy	3 bpm
NIBP
Technique	Oscillometric during inflation
Range	Adult/Pediatric:40-240mmHg Neonate: 40-150mmHg
Measurement cycle	<40 sec,typical
Cycles(Selectable)	1,2,3,4.5,10,15,30,60,90, 120,180,240,480min
STAT model	5 minutes of continuous reading
Resolution	1mmHg
NIBP Accurancy	±5mmHg
