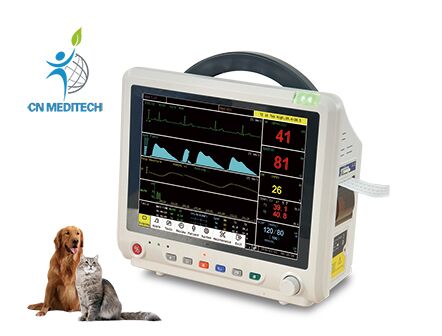

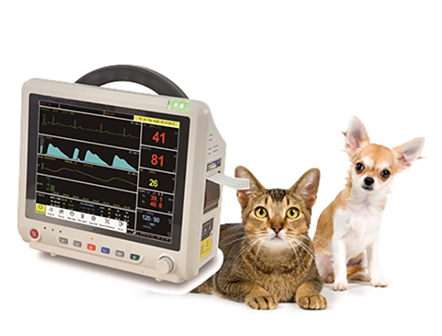

12.1 Inch Veterinary Multi-Parameter Patient Monitor

Model:CNME0101VET-1


Features:

12.1 inch large-sized screen, anti-dazzle with 4°incline.

Wide-angle alarms indicator makes patients safer.

Unique designed LOGO for veterinary use only.

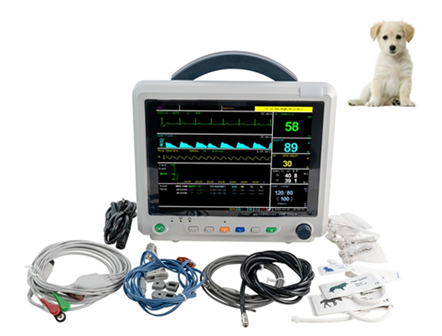

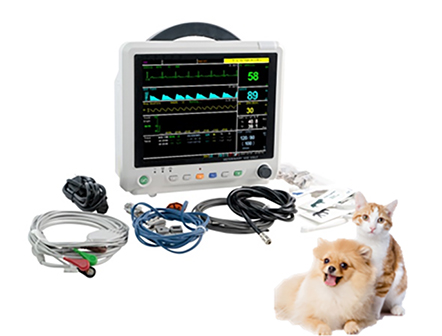

Variety of accessories for different size veterinaries.

Widely used in pet hospitals and animal clinics etc.

Large pulse rate range of 20-350 for maximum applications.

Selectable for 3 or 5 leads ECG mode.

3 NIBP cuffs are included and fit a variety of patients.

3-level visual/audio alarms and alarm events can be stored and reviewed.

Support slot interfaces:Network,Wi-fi.


Specifications:

SpO2
Aturation range1% to 100%
Accuracy70-100%(±2%),<70% undefined
Resolution1%
Display sweep speed10.00 mm/sec
Pulse Rate
Aturation range25bpm to 350bpm
Accuracy±2bpm/±2% take maximum
Resolution1bpm
ECG
Aturation range25bpm to 350bpm
Accuracy±2bpm/±2% take maximum
Resolution1bpm
LeadsI,II,III,V,aVR,aVL or aVL
Display gainX1/4,X1/2,X1,X2,X4
Display sweep speed6.25,12.5,25,50mm/sec
NIBP
MethodOscillometric
Aturation Range0-300mmHg
AccuracyBased on ANSI/AAMI SP10:1992 and 2002 Standards
Measurement Time30-50s typical,180s maximum
AUTO Interval Times2,3,5,10,30 min,or 1,2h
RESP
Aturation range0-130rpm
Accuracy±1 pm
Resolution1rpm
TEMP
Aturation range0-50ºC
Accuracy±0.2ºC
Resolution0.1ºC
