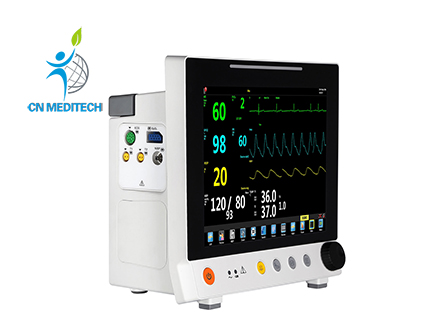

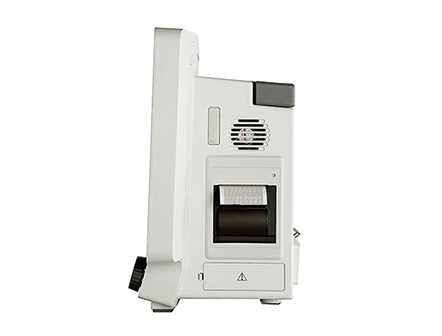

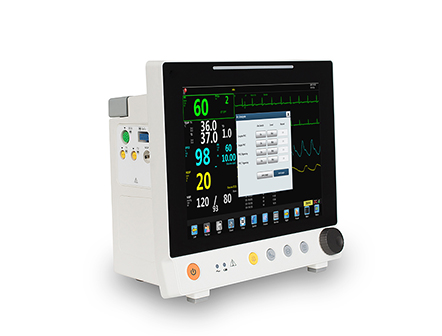

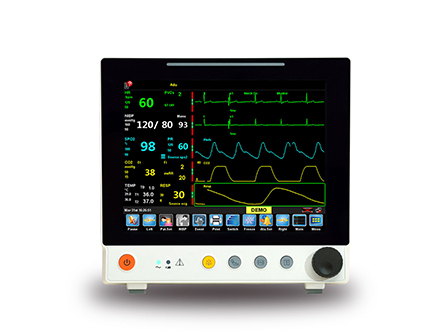

12.1”Color TFT LCD Screen ICU Patient Monitoring Patient Monitor

Model:CNME010124


Features:

12.1" color TFT LCD screen

8 waveform display,up to 12-lead ECG analysis

Powerful calculation(Hemodynamic,Dose,Oxygenation,Ventilation)

Pacemaker detection

ST & arrhythmia analysis

OxyCRGs screen

Night mode, standby mode, venipucture mode

Various mounting solutions

Wired/Wireless CMS, support HL7 protocol to HIS

SpO2 pulse-tone modulation (Pitch Tone)

MEWS(Modified Early Warning Score)

Graphical & tabular trend review(120 hours)

Rechargeable Lithium-lon Battery

48 Hours full disclosure waveforms display


Specifications:

Display
Screen12.1"TFT Touch screen
Resolution800x600
Number of traces8 waveforms
ECG
Lead type3-lead,5-lead,12-lead
ECG waveform2 channels,7 channels, 12 channels
Display sensitivity2.5mm/mV(*0.25),5mm/mV(*0.5), 10mm/mV(*1.0),20mm/mV(*2.0)
Wave sweep speed6.25mm/s,12.5mm/s,25mm/s,50mm/s
BandwidthDiagnostic mode: 0.05Hz~100Hz
Monitor mode:0.5Hz~40Hz
Surgery mode:1Hz~20Hz
Strong filter mode: 5Hz~20Hz
RESP
Measurement methodThoracic electrical bioimpedance
Measuring leadLead I,II
Wave gain*0.25,*0.5,*1,*2
Measurement range0~150 rpm
Bandwidth0.3 to 2 Hz
Respiratory impedance range0.5-5Ω
Baseline impedance500-4000Ω
Gain10 grades
Scan speed6.25mm/s,12.5 mm/s,25mm/s and 50mm/s
Pulse Rate
Range30~254bpm
Resolution1bpm
Accuracy±2bpm(non-motion)
±5bpm(motion)
Refreshing rate1s
TEMP
Accuracy±0.1ºC or ±0.2ºC °F
Measurement range5~50ºC(41~122°F)
ChannelTwo channels
Resolution0.1ºC
ParametersT1,T2 and TD
NIBP
Measurement methodAutomatic oscillometric method
Operating modeManual,automatic,continuous
Measurement unitmmHg/kPa selectable
Typical measurement time20~40s
Measurement typeSystolic, Diastolic,Mean
SpO2
Measurement range0-100%
Resolution1%
Accuracy±2%(70-100%,Adult/Pediatric);
±3%(70-100%,Neonate);
0-69%,unspecified
Refreshing Rate1s
