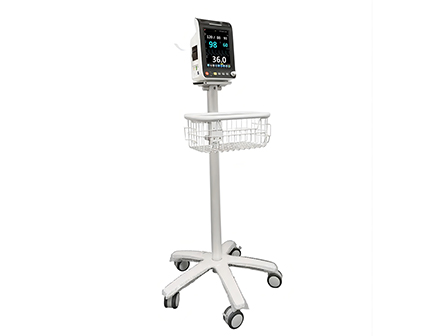

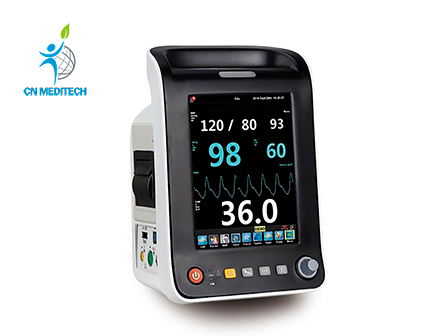

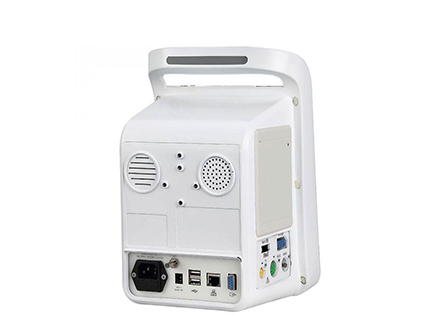

8.4′′ TFT Screen Vital Sign Monitor Machine

Model:CNME0101V4


Features:

8.4" color TFT LCD Screen (Touch screen is an optional)

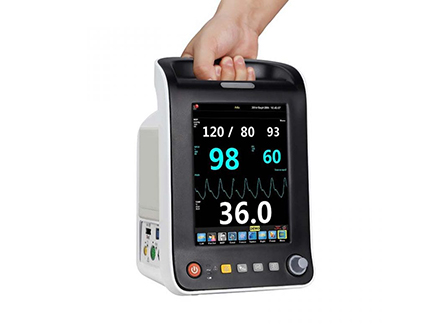

Portable,Lighter weight and sturdy design

MEWS (Modified Early Warning Score)

Calculations: Hemodynamics/Dose calculation

Rechargeable Li-ion Battery(up to 15 hours uninterruptable work)

Spot-check and continuous monitoring mode

Selectable for Adult,Pediatric and Neonatal patients

Wired/WIFI/3G/4G CMS, support HL7 protocol to HIS

Barcode scanner, Infrared ear thermometer support

Night mode selectable, helps to reduce light stimulation and noise

Graphical &tabular trend review(120 hours)

48H full disclosure wave review for each patient


Specifications:

Display
Screen8.4" color TFT LCD Screen
Resolution600 x 800
ECG
Lead type
  1. lead:I,II,III

5-lead:I,II,III,aVR, aVL, aVF, V
ECG waveform1 channel,7 channels
Display sensitivity2.5mm/mV(*0.25),5mm/mV(*0.5), 10mm/mV(*1.0),20mm/mV(*2.0)
Wave sweep speed6.25mm/s,12.5mm/s,25mm/s,50m/s
BandwidthDiagnostic mode:0.05Hz~100Hz
Monitor mode:0.5Hz~40Hz
Surgery mode:1Hz~20Hz
Strong filter mode: 5Hz~20Hz
RESP
Measurement methodThoracic electrical bioimpedance
Measuring leadLead I,II
Wave gain*0.25,*0.5,*1,*2
Respiratory impedance range0.5-5Ω  0-150bpm
Baseline impedance500-4000Ω
Gain10 grades
Scan speed6.25mm/s,12.5mm/s,25mm/s
TEMP
Measurement methodThermistor
Measuring range5~50ºC(41~122°F)
Resolution0.1ºC
Measurement accuracy±0.1°C
NIBP
Measurement methodAutomatic oscillometric method
Operating modeManual, automatic, continuous
Measurement unitmmHg/kPa selectable
Typical measurement time20~35s
Measurement typeSystolic, Diastolic,Mean
Northern SpO2
Measurement range0-100%
Resolution1%
Parameter monitoringPerfusion Index(PI):0-20%
Optional Pleth Variability Index(PVI)
Accuracy±2% or±2bpm
Refreshing Rate1s
