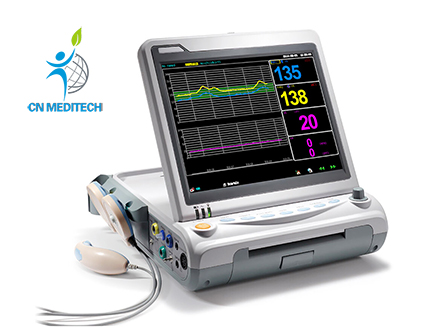

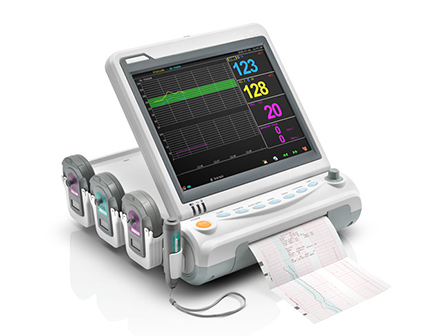

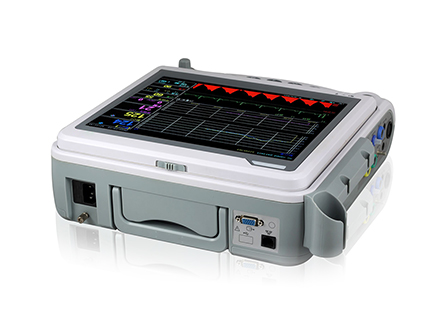

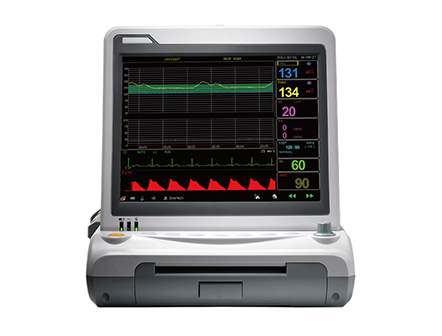

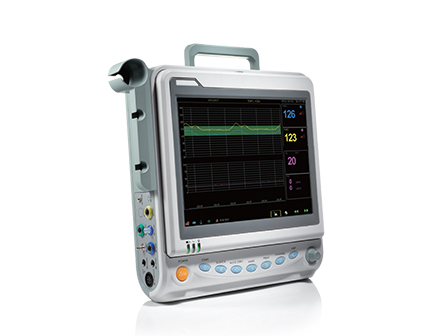

Portable Physiologic Monitoring System Fetal/Maternal Heart Monitor

Model:CNME010115/CNME010115plus


Features:

Foldable handle & 12.1'' color TFT LCD screen.

24hrs CTG data storage and power-off memory.

Adjustable display background; simultaneously display waveform and data.

Unique thermal printing software; Wide-range printing; 25mm/s high speed recall printing.

FHR, TOCO, FM and activities curve of fetal can be monitored; Display fetal movement count, auto/manual mode is available.

Low-power consumption design with standby mode, rechargeable high-energy built-in battery; Support 24 hours monitoring.

Auto/manual patient ID generation, easy user-management & data searching.

Real-time& timing printing; Event remark.

Unique patent G5A in against electrosurgical interface; either in cutting or in burning, ECG waveform and HR won't be influenced.

Goertzel arithmetic ensures fast and accurate NIBP, and realizes venipuncture.

Audio & visual alarm and adjustable alarm limits/tone. Sensor off alarm, abnormal alarm, remark and alarm review function are available.

Upgradeable to maternal multi-parameter monitoring.

USB output for data transmission.


Specifications:

FHR
Ultrasound frequency1MHz±10% impulse wave
Ultrasound input intensity<10MW/cm²
Range50~240bpm
Accurancy±1bpm
Alarm limit&toleranceMax: (70~210)bpm, tolerance:±5%
Min:(60~200)bpm,tolerance:±5%
TOCO
Measurement range(0~100) Pressure unit
Resolution1%
Pressure tolerance≤+8%
Zero-modeManual
ECG
Input3/5 wires ECG cable
Lead sectionI,II,III,aVR, aVL, aVF, V
Gain selection×1/4,×1/2,×1,×2,×4 and automatic
Sweep speed6.25,12.5,25,50mm/s
Calibration±1mv
Accuracy±1bpm or ±1%(select the bigger data)
SpO2
Display typeWaveform, data
Measurement range0~100%
Accuracy±3%(between70%~100%)
Pulse rate range30~250bpm
Accuracy±1bpm or±2%(select the bigger data)
PR Resolution1bpm
NIBP
PhilosophyOscillometric method
Measurement typeSBP:(0~40)kPa;(0~300)mmHg;
DBP:(1.3~26.7)kPa;(10~200)mmHg;
MAP:(2.7~29.3)kPa;(20~220)mmHg;
Resolution1mmHg
AccuracyStatic:±3mmHg
Clinical:±5mmHg standard deviation:≤8mmHg
Alarm tolerance±5%
