Model:CNME05R0101
Features:
1.Intelligent digital Full HD Effective pixels is 1920(H)*1080(V)
2.Multi-output:HDMI*2,SDI, CVBS, VGA, USB
3.Application: Laparoscopy, Gynecology,Urology, ENT.Orthopedics, etc.
4.Medical Endoscope Full HD Camera& Medical Monitor &HD Recorder & LED Light Source
Detailed parameter as following table:
Medical Monitor | |
Screen size | 17’’ |
Color | 10.7 billion |
Aspect Ration | 5:4 |
HD Recorder | |||
Specifications | Parameters | External U flash disk | Max 64G |
Recordering format | MP4 | External mobile HDD | Max 2T |
Recordering quality | MAX 18Mbs @1080P 30Fps | Recorder interface | Support USB disk &removable hard disk |
Endoscope Full HD Camera | |||
Image device | 1/1.8 CMOS | SNR | ≥50dB |
SY | PAL | Brightness | ODS Adjustable |
Total Pixels | N:2010(H)*1108(V) P:2010(H)*1118(V) | Backlight processing | Wide dynamic(rank adjustable)/backlight compensation/strong inhibition |
Effective Pixels | N:1920(H)*1080(V) P:1920(H)*1080(V) | Synchronous syetem | Internal Synchronization |
Scanning system | 2:1 progressive | White balance | Auto/MANUA |
Scan frequency | N:60HZ P:60HZ | Acutance &saturation | Turn om/off grade adjustable |
Scanning mode | Progressive scanning | AG | Low/medium/high/off grade adjustable |
Horizontal Resolution | 1100TVL | Minimum Ⅲumination | F1.2≤0.11Lx |
Electronic shutter | 1/50(60)S-1/60,000s | Rollovers | on/off |
OSD Control-Menu | Built in external
| DNR | 3D VOX |
LED Light Source | |||
Input power | 80VA | Light output hole diameter | φ（10±0.10）mm |
Light source | LED | Working conditions | 5℃~+40℃ |
Brightness | ≥1,200,000Lux | Storage conditions | -40℃～+55℃ |
Color temperature | ≥6500k | Continuous working hours | >4h |

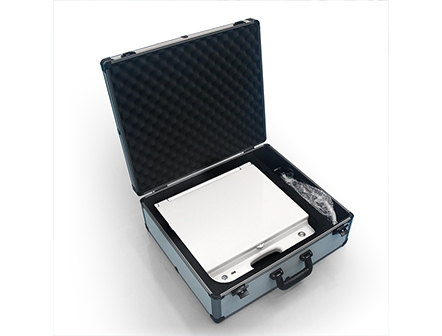

Package details:
Size:65*58*25cm,G.W.:15.3kg.
