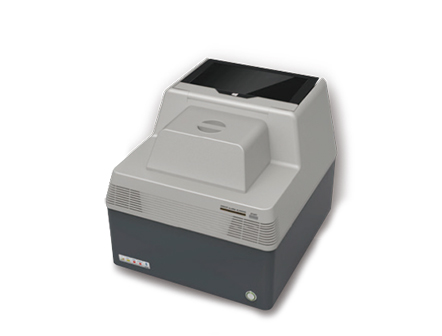

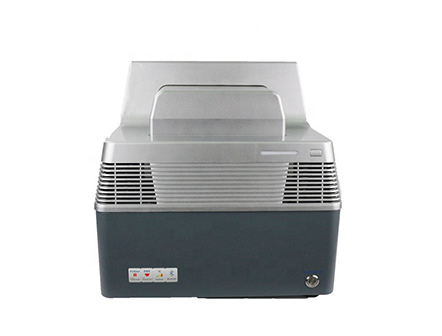

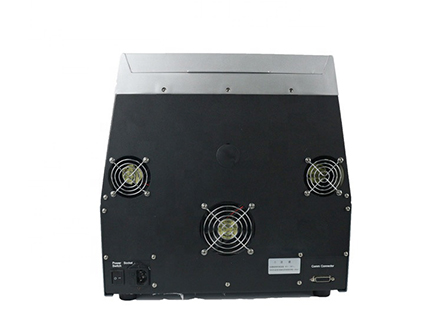

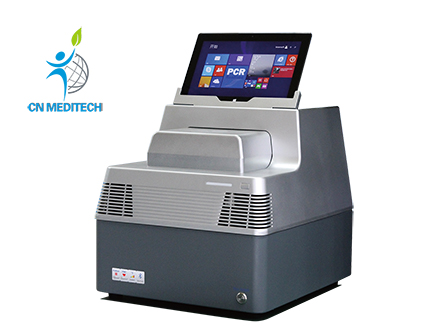

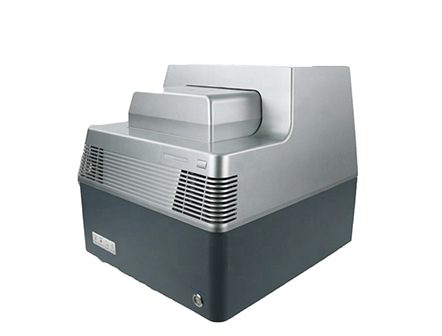

High Throughput Real-time PCR Machine Fluorescence Quantitative Detection System

Model:CNME030702


Features:


Integrated Tablet Computer

Convenient Operation, Wireless Experience

96 Wells High Throughput

Upgraded Motors with Automatic Brake Function

Max. Gradient Range 36℃

3D Hotlid Design


Specifications:

Fluorescence Channels
2/4/5/6 fluorescence channels
Sample Capacity
96-Well PCR plate,12*8-strip,96*0.2ml(Bottom Transparent)
Dynamics Range
1-1010 Copies
Excitation Wavelength
300-800nm
Emission Wavelength
500-800nm
Heating/Cooling Rate
4.0 ℃/s(max)
Temp. Control Accuracy
≤±0.2℃
Temp. Fluctuation
≤±0.1℃
Temp. Uniformity
≤±0.4℃
Sample Volume Range
5~100μL
Gradient Temp. Range
1~36℃
Fluorescence Detection Repeatability
5%
Operation Mode
Continuous
Scan Period
5.5S
Power Supply
100-240V~50/60Hz 600W
Dimension(L*W*H)
410mm*386mm*352mm
