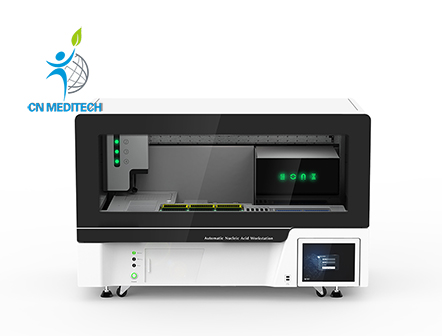

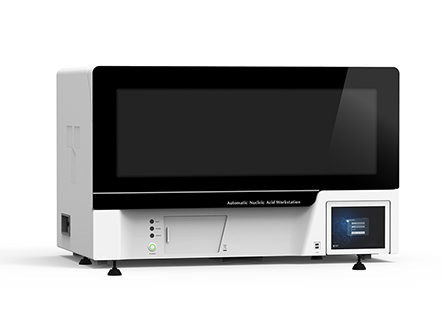

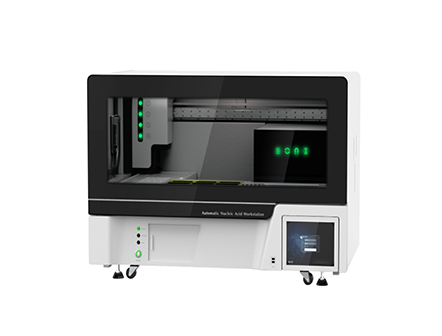

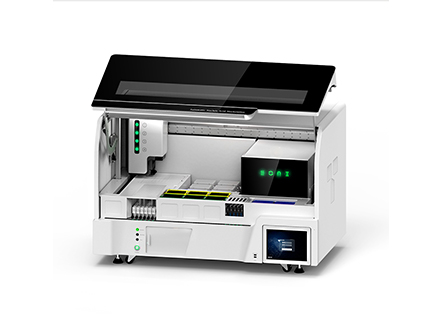

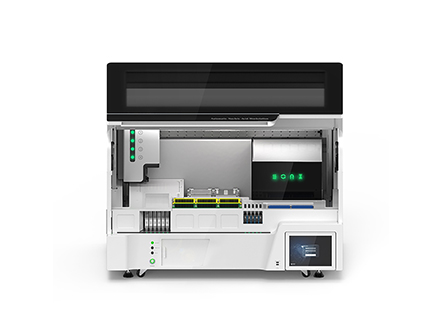

Model:CNME030712
Application:
HBV,HCV,HIV,Flu Virus,HPV,HCMV,EB,MP,etc.
Features:
High contamination-resistant capability
Reliable contamination control ensured by rotary nucleic acid extraction technology, droplet capture technology, experimental partitioning, air filtration, and UV disinfection.
Fast and high throughput
Automated sample loading,nucleic acid extraction,and PCR system setup for 96 samples within 70min.
Highly flexible and adaptable
The product can be applied with single-strip reagents,3-6 wells extraction available to process various sample types; four PCR reaction systems can be set up simultaneously.
Accurate and reliable
Precise sample loading and accurate temperature control, provide stable and reliable test results with reagents and consumables independently developed by CNMEDITECH.
User friendly and full-automatic
Prepackaged extraction kits, automated set-up of PCR systems, automatic dilution of proteinase K, automatic retention of original sample and nucleic acid products, and other easy-to-use designs help achieve real whole-process automation.
Specifications:
Sample throughput | 1 to 96 |
Function | Automatic nucleic acid extraction + PCR system setup |
Principle | The principle of magnetic beads method and rotary nucleic acid extraction technology |
Test capacity | 192 samples can be tested per run, and four different systems of PCR-setup |
Sample types | Plasma, serum, whole blood, swab lotion, urine, and other samples |
Sample Loading Channels | 1 to 4 |
Pipetting performance | Below 15μL: accuracy:A≤2.0%,repeatability CV≤3.0%；
15μl to 50μL:accuracy:A≤1.5%,repeatability CV≤1.5%；
Above 50uL:accuracy: A≤1.0%, repeatability CV≤1.0%; |
Liquid level detection | Liquid level detection of capacitive-sensing/pressure-sensing |
Specification of sample tube | Compatible with blood collection tubes of all specifications, centrifugal tubes of 1.5mL
and 2.0mL, freezing tubes, sample loading cups, etc. |
Temperature control of extraction module | Two steps of lysis and elution, 35℃-120℃, free temperature control |
Information identification technology | Barcode identification of reagent information and visual monitoring of consumables status |
PCR reagent chamber | Light-proofing design; automatic cooling on start-up (4℃ ~ 15℃ refrigerator) |
PCR consumables | Compatible with 8-tube strips of 0.1mL and 0.2mL, and 96-well plates |
Appearance and dimension | 1370mm(L)*810mm(W)*890mm(H);220kg;
Embedded 12-inch touch screen, multi-module real-time status indicator. |
