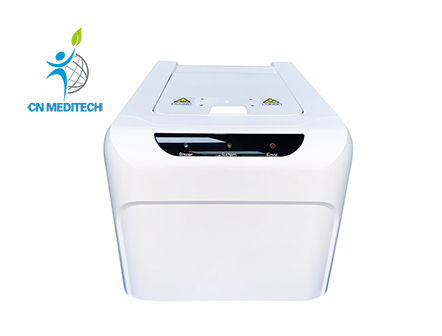

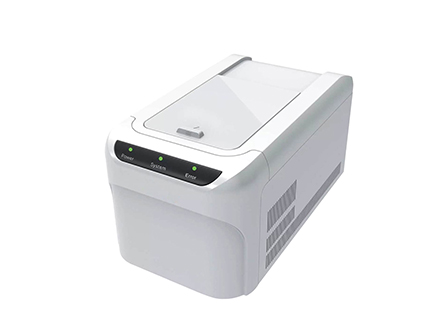

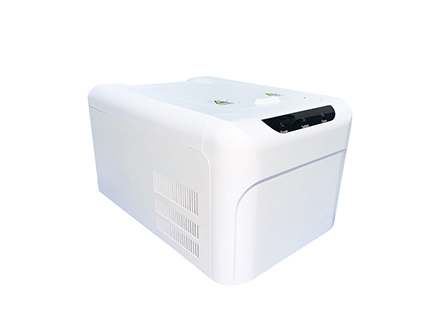

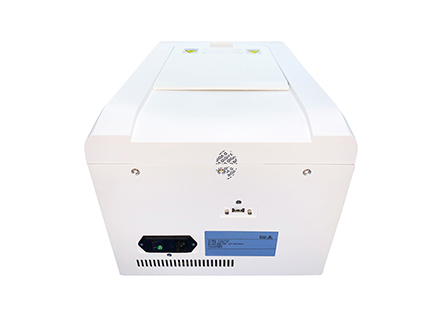

Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine
  • Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine
  • Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine
  • Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine
  • Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine
  • Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine
Rapid QPCR System Real Time Fluorescent Quantitative PCR MachineRapid QPCR System Real Time Fluorescent Quantitative PCR MachineRapid QPCR System Real Time Fluorescent Quantitative PCR MachineRapid QPCR System Real Time Fluorescent Quantitative PCR MachineRapid QPCR System Real Time Fluorescent Quantitative PCR Machine

Get Quotes

Download Full Catalogue

Rapid QPCR System Real Time Fluorescent Quantitative PCR Machine

Model:CNME030707


Description:


CNME030707 Real-Time Quantitative Thermal Cycler adopts maintance-free LED as the excitation light source, which is operated by external computer, with high efficiency and convenience, and can be widely used in basic medical research, pathogen detection,molecular cloning, genetic screening, gene expression, gene typing and transgenic detection, food safety testing and epidemic monitoring and other fields.


Features:


Excellent temperature control performance

High quality semiconductor thermoelectric module, combined with German high-end PT1000 temperature sensor and edge thermal compensation temperature.


Super multi-purpose function

Peltier Base heating module with multi-point temperature control can provide gradient temperature function of optimization experiment.


Extraordinary optical design

Maintance-free LED excitation light source, fluorescence signal of high temperature resistant professional fiber real-time transmission of 48-hole, high signal-to-noise ratio photodiode reading signal, ensure no edge effect.


Friendly, intuitive software setup interface

Quick response parameter setting wizard, intuitive sample setting wizard,powerful experimental data analysis function.


Fast lab start and report output

It does not need preheating and is easy to operate on and off and can be used for experiments in 30s. Intelligent data analysis,report output can be completed within 10 minutes.


Specifications:

Basic performance
Overall dimensions
466*310*273mm
Weight
18Kg
Power supply
110V~240V,50~60Hz
Communication interface
USB
PCR system performance

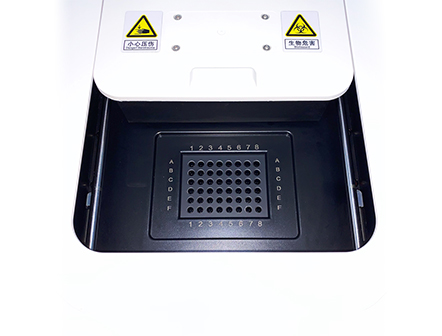

Tube capacity
48*0.2ml
Sample volume
20~120ul
Apply consumables
0.2ml PCR tube、8*0.2ml PCR tube
Temperature control range
4~99℃
Temperature accuracy
≤0.1℃
Temperature uniformity
≤±0.25℃
Heating rate
4.5℃/s
Cooling rate
3.0℃/s
Heating/cooling
Semiconductor mode
Hot cover
Electric heat cover
Fluorescence detection system performance
Light source
High brightness LED
Detector
PD
Excitation and detection of propagation media
High temperature resistant professional fiber
Linear range of samples
100-109copies
Sample linearity
R≥0.99
Sample testing repeatability
CV<1.00%
