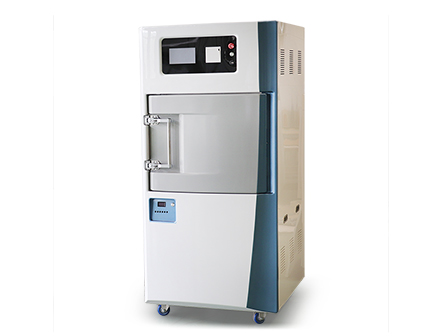

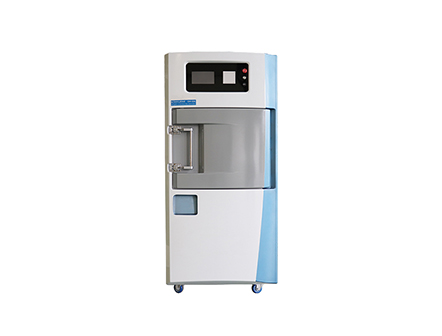

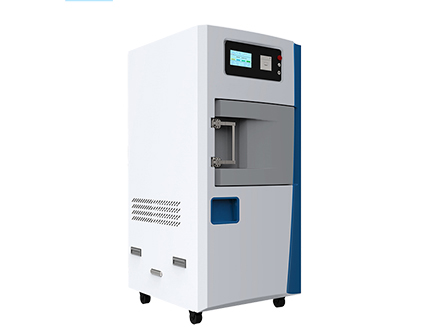

CNME060353
Ethylene Oxide Sterilizer Specification:
Product Mode | CNME060353 |
Product Type | Manual open door vertical |
Heating method | electric heating |
Temperature at sterilization | 50 ℃ ± 5 ℃ Adjustable |
Work pressure | -60 kpa |
Sterilizing humidity | 45-75% |
Selection of sterilizers | EO gas |
Chamber material | 5052 Aluminium |
Carton material | Coated ABS |
Touch Screen | 7” |
Control System | PLC |
Power Supply | 220V / 50Hz |
Whole sterilization time | 8-12 hours |
Features:
1.Pure ethylene oxide gas, pure EO gas cartridge, 0.6g /L EO sterilizer.
2.Gas consumption : 120L-72g, 220L-132g
3.Ethylene oxide gas injection method: Interior with ethylene oxide gas tank, automatic impale method.
4.Air exchange: Automatic air replacement after sterilization, 15 minutes/cycle, 5 cycles
5.Full automatic control system: One button to control from start to end and finish automatically with printing record.
6.Vacuum system: Adapting the oil free vacuum pump, simple and convenient, the vacuum speed is fast and the service life is long.
7.Heating system: Adapting to anti-explosion electric heating device, more convenient and fast.
8.Variety of protective function: It has over temperature protection function and residual gas automatic process system. While the errors happen it have sound alarm. when the whole sterilization finished, have sound reminder also.
9.Automatic recovery function: regardless of power cut,outage, or the program disorder, it can determine the point of failure, the program can automatic recovery after power on and the device continue running.
10.Multiple protection functions: With over temperature protection function,more safe and reliable.
11.Air inlet : The air inlet is provided with a sterile filter, which can effectively filter out bacteria and microorganisms, and avoid the second time pollution when discharged.
12.Integrated Incubator : micro-computer control biological incubator for EO gas sterilization result bio-check .
How it works ?
Step 1: insert the pure EO gas bottle in carriage and packed devices ( packed by non-woven , pouch, depended on your purpose ) on tray .
Step 2
Setting the parameters. commonly no need to set,we set it at factory, if you have special parameter require,you can edit it .
Step 3
Back to main menu page, click start. the machine will running automatic .
3.1 the machine do sealing ability self-diagnose first, because the EO sterilization is under negative pressure. -3kpa is the set value, if chamber pressure reach this number within the set time, the process will going on .
3.2 the machine heater works to warm the chamber air to 50 C.
3.3 The humidifier make the chamber humidity to 60 %
3.4 The vacuum pump extract the chamber pressure to - 60 kpa.
3.5 The machine piston rod puncture the EO bottle, the EO gas diffusion in the chamber. Gas diffusion in chamber last about 5 hours . the diffusion time can be settable.
3.6 when the diffusion stage finished, the machine enter the residual EO processing stage.
3.7 fresh sterilize air in, 15 minutes in chamber, exhaust gas pollute out by pump , this air replacement processure need run 5 cycles.
3.8 then pollute out EO residual go though machine inside abator, drain to container.
3.9 after the 5nd air-replacement finished, the chamber pressure up to atmosphere , whole sterilization end .
4.0 the machine make audio noise remind the operator, the sterilized object can took out .
