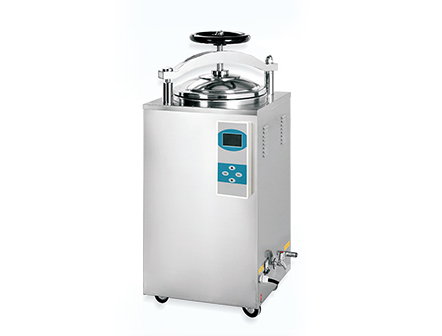

Medical 35L/50L/75L/100L Vertical Pressure Steam Autoclave Sterilizer
  • Medical 35L/50L/75L/100L Vertical Pressure Steam Autoclave Sterilizer
Medical 35L/50L/75L/100L Vertical Pressure Steam Autoclave Sterilizer

Get Quotes

Download Full Catalogue

Medical 35L/50L/75L/100L Vertical Pressure Steam Autoclave Sterilizer

Model:CNME060314


Application:

The vertical pressure steam sterilizers are assembled with heating system, micro-computer controlled system, over heat and over pressure protection system, which are reliable for the sterilizing effects, convenient of operation and energy conservation. They are ideal equipments for clinics, scientific research institutes and other organizations to sterilizer surgical instruments, fabrics, glasses, culture media etc.



Characteristics:

1. Fully stainless steel structure

2. Hand wheel type of quick-open door structure

3. Door safety lock system

4. LCD display of working status,touch type key

5. Auto discharge the cool air,and steam discharge automatically after sterilization

6. Over temperature&over pressure auto-protection

7. Safe protection of water lacking

8. Self-inflating type seal

9. Automatically shut off with beep reminding after sterilization

10. Easy to operate,safe and reliable

11. With two stainless steel sterilizing baskets

12. With drying system



Technical Data:

Model

CNME060314-35L

CNME060314-50L

CNME060314-75L

CNME060314-100L

Chamber

volume

35L

318*450mm

50L

340*550mm

75L

400*600mm

100L

440*650mm

Working pressure

0.22Mpa

Working temperature

134

Max.working temperature

0.23Mpa

Heat average

≤±1

Timer range

0-99min or 0-99hour59min

Temperature adjust range

105-134℃

Power

2.5Kw/AC220V.50Hz

3Kw/AC220V.50Hz

4.5Kw/AC220V.50Hz

Overall dimension

450*450*1010

510*470*1130

560*560*1120

540*560*1250

Transport dimension

570*550*1150

590*590*1280

650*630*1280

680*630*1370

G.W/N.W

72kg/56kg

88kg/68kg

100kg/80kg

110kg/85kg
