CNME060331
Application:

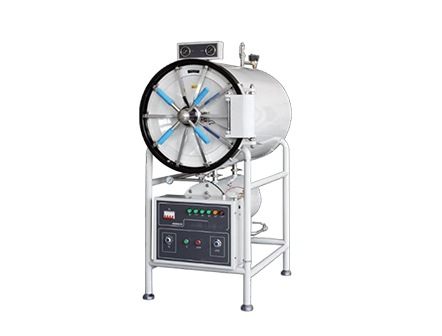

The horizontal autoclave,which adopte the way of gravity exchange to release the cold air from the chamber more completely to ensure the reliable sterilization. The control system automatically adjust the steam inlet and outlet according to chamber temperature during sterilizing. This unit is an ideal equipment for clinics, scientific research institutes and other organizations to sterilize surgical instruments, fabric glassed, and the culture media etc.
Technical data:
Type | Horizontal steam sterilizer | ||||
Shell material | sprayed steel | ||||
Sterilizing chamber volume | 150L φ440×1000mm | 200L φ515×1000mm | 280L φ600×1000mm | 400L Φ700×1100mm | 500L Φ700×1300mm |
working pressure | 0.22MPa | ||||
working temperature |
134℃ | ||||
Adjustment of temperature |
105℃ - 134℃ | ||||
Time of sterilization | 0-60 min | ||||
Time of drying | 0-60 min | ||||
Heat average | ≤±2℃ | ||||
Power | 9KW/380V 50Hz | 9KW/380V 50Hz | 12KW/380V 50Hz | 18KW/380V 50Hz | 18KW/380V 50Hz |
Dimension | 1400×600×1300 | 1400×670×1650 | 1400×770×1780 | 1430×880×1830 | 1800×900×1820 |
Transport dimension | 1550×750×1850 | 1560×820×1850 | 1680×920×2100 | 1600×1050×2100 | 1850×1050×2100 |
G.W/N.W | 320/240 KG | 350/260 KG | 465/365 KG | 530/420 KG | 580/470 KG |
Features:
1. Fully automatic controlled, easy to operate.
2. With drying function, suitable dressing drying.
3. With over-temperature, over-pressure auto-protect device.
4. The door opening mechanism cannot be operated until the pressure in the chamber is reduced to 0.027 Mpa. It can’t be start on if the door doesn’t close well.
5. The safety valve will be open automatically when the inner pressure over 0.24 MPa and the steam be exhausting to the water link.
6. The power will be cut-off automatically, cut-off the water and alarm when the machine lacking water.
7. The chamber is made of stainless steel 304.
8. With printer.
