Micro Intravenous Portable Electric IV Infusion Pump for First Aid
  • Micro Intravenous Portable Electric IV Infusion Pump for First Aid
Micro Intravenous Portable Electric IV Infusion Pump for First Aid

Get Quotes

Download Full Catalogue

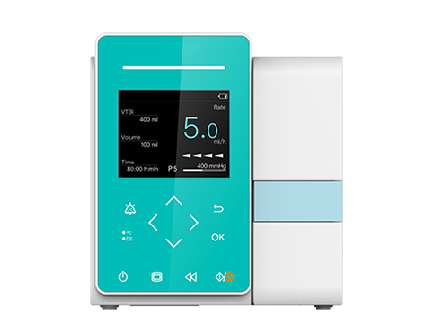

Micro Intravenous Portable Electric IV Infusion Pump for First Aid

Model: CNME010505


Description:
Using any standard IV sets and storing up to 200 editable brands
Resetting rate, volume, air level, occlusion level without stop infusion
Optional WIFI connection to central monitor
Last therapy for rapid infusion start
Intuitive keypad




Technical Specifications:

Basic Parameters

Case Material

PBT+PC

Screen

2.8 inch color TFT screen

Infusion Mode

ml/h (include Rate mode, Time mode), Body weight, Drip, Micro

Accuracy

±5%

Flow Rate Range

0.1-2000ml/h (min. increment 0.01 ml/h)

VTBI

0-9999.99 ml

KVO

0-5ml/h adjustable (min. increment 0.01 ml/h)

Bolus Rate

0.1-2000ml/h (automatic & manual bolus available)

Occlusion Level

4 levels selectable (150mmHg - 900mmHg)

Interface

DB15 muti-functional interface

Wireless

Wifi (optional)

Alarm Type

VTBI Infused, Occlusion, Pressure drop, Battery empty, KVO finished, Standby time end, Door Open, Single air bubble, Accumulated air bubble, Abnormal drip rate, Empty drip chamber, VTBI near end, Battery near empty, Reminder alarm, No power supply, Drop sensor connection, System error, etc.

Special Features

Titration

Change flow rate without stopping infusion

Reset total volume

Reset total infused volume to zero without stopping infusion

Reset occlusion level

Reset occlusion alarm level without stopping infusion

Reset air bubble level

Reset air bubble alarm level without stopping infusion

Last Therapy

Last therapies can be stored and used for rapid infusion

Drug Library

No less than 30 drugs

DERS

Drug erro reduction system

Anti-Bolus

Automatic drop line pressure to reduce bolus impact after occlusion

Purge

Remove the air bubble

Screen Lock

Avoid misoperation

Standby Mode

Standby time adjustable

Micro Mode

Limit the max infusion rate to double ensure patient safety

DPS

Real-time pressure display in graphically and numerically

Bubble Detector

Adjustable. Single bubble and accumulated bubble in 15min

Brightness

Adjustable

Alarm Volume

Adjustable

History Record

More than 2000 entries

Power Source

AC Power

110V-240V, 50/60HZ

External DC Power

10-16V

Battery

Lithium Polymer battery 2600mAh*1, more than 5 hours operating time at 25ml/h
Lithium Polymer battery 2600mAh*2, more than 10 hours operating time at 25ml/h
