Model: CNME010515plus
Feature:
High accuracy: ±2%
Fast start function against start delay
Anti-bolus function
DERS(Drug error reduction system)
IP Level: IP34
11 hours battery back-up time
4.3" colour touch screen
Intuitive operation system
Automatic calibration
Inter-Lockable
Technical Specification:
Basic Parameters | |

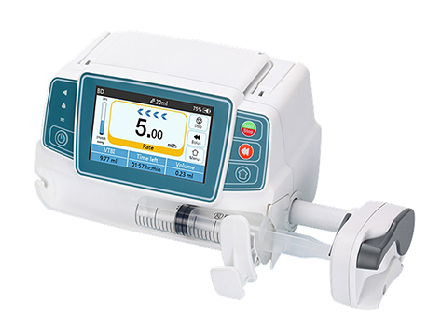

Product name | Multi-Channel Medical Automated Syringe Pump with Multiple Infusion Mode |
Dimension | 242* 126* 111 |
Weight | Approx. 1.7kg |
Display | 4.3 inch colour touch screen |
Syringe sizes | 2ml, 5ml, 10ml, 20ml, 30ml, 50/60ml; Automatic recognition |
Flow rate accuracy | ±2% |
Flow rate | 0.1-1500 ml/h (depending on syringe size, with increment 0.01 ml/h) |
VTBI | 0-9999.99 ml |
Dose rate units | More than 15 types |
Concentration calculate | Automatically |
Bolus setting | Manual bolus Programmable bolus |
KVO rate | 0.1-5.0 ml/h |
Infusion modes | 8 infusion modes (Rate mode, Time mode, Body-weight mode, TIVA mode, Drug library mode, Ramp up/down mode, Loading-dose mode, Sequence mode) |
Handle | Included |
Drug library | More than 2000 |
Purge | Yes |
Titration | Yes |
Micro mode | Yes |
Standby mode | Yes |
Screen lock | Yes |
Occlusion levels | 12 levels |
Anti-bolus | Automatically |
Records | More than 5000 entries |
Alarms | VTBI near end, VTBI infused, Pressure high, Battery nearly empty, Battery empty, No power supply, Reminder alarm, KVO finished, Check syringe, Syringe empty, Standby time expired, System error |
Interface | |
IrDA | Optional |
Data interface | USB |
Wireless | WiFi (optional) |
DC input | Yes |
RS232 | Supported |
Nurse call | Supported |
