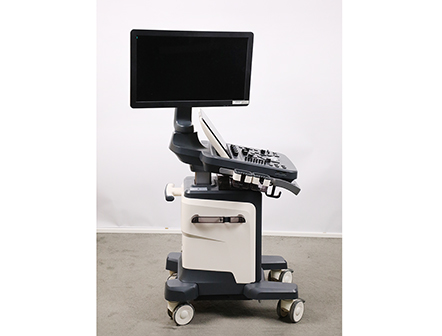

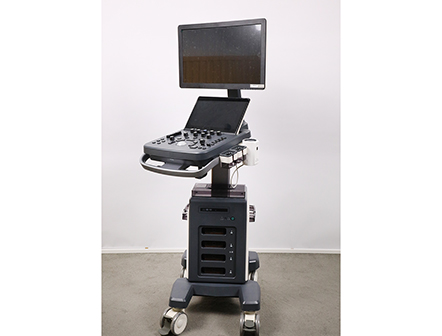

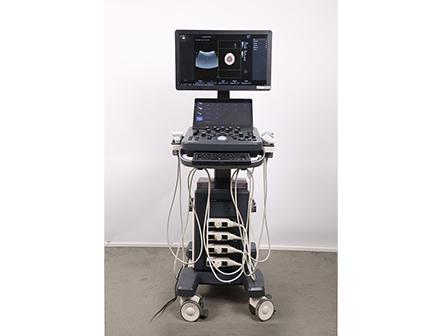

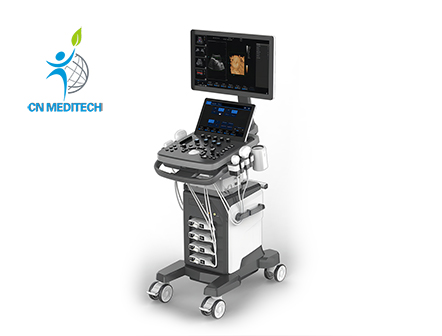

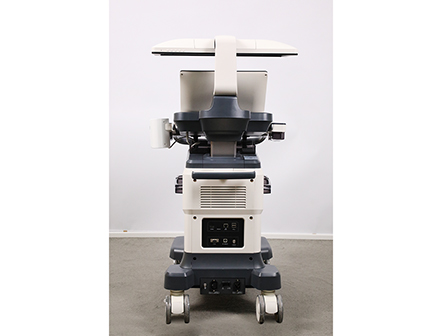

Full Digital 3D 4D Color Doppler Trolley Ultrasound Machine

Model:CNME010216

Features:

21″ High definition LCD monitor，13.3″ Touch screen

Display mode:B, B Steer, 2B/4B, M, B/M, CDFI, PDI, CM, PW, AMM, CW, TDI (TVI, TVD, TVM, TEI), Trapezoidal, 3D/4D.

4 probe sockets

Video, S-Video, Audio in/out, DVI, VGA, HDMI, RS-232, RJ45, Output：DICOM3.0, USB

3 lead-ECG

Probe elements:128

Standard with 3.5Mhz convex &7.5 Mhz Linear probe

Optional:6.5Mhz Transvaginal;3.5Mhz Micro-convex;3.0 Mhz Phased array;6.5 Mhz 4D volume probe

Specifications:

Clinical Applications	Abdomen,Obstetrics,Gynecology,Urology,Cardiology,Pediatric,Small Parts,Blood Vessel,Superficial,Orthopedic,MSK,Nerve,Custom
Transducer Types	Convex transducer,Linear array,Trans-vaginal transducer,Micro-convex transducer,Phased array transducer,4D volume transducer
Imaging modes	B-Mode,B steer,2B/4B-Mode,M-Mode,B/M-Mode,CDFI - Mode,PDI-Mode, CM-Mode,PW-Mode,Anatomic M mode,Panoramic,Color panoramic,Trapezoidal (Linear probe) ,Extended imaging (EFOV),CW -Mode,TDI (TVI, TVD, TVM, TEI),3D/4D Mode
Image saving	Format: JPG/AVI, DCM, BMP/AVI, TIFF/AVI
Dimension and weight	Width: approx. 528mm Height: 1235mm~1435mm (With adjustable) Thickness: approx.607 mm Weight: approx. 65kg
Touch Screen	13.3-inch touch screen
Transducer ports and holders	4 activated transducer ports 1 Pen probe port 4 removable transducer holders 4 probe wire hooks
