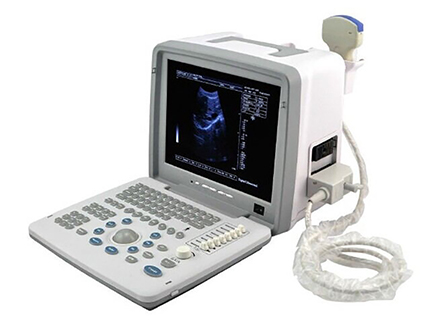

Model:CNME0102B2
Features:
12"color LED screen,friendly interface and fashion design.
High-capacity video replay and permanent image storage.
Humanization keyboard,intelligent fluorescent tackball.
8 segment TGC control, overall GAIN control.
High-speed USB port supports large-capacity USB Disk.
2 probe sockets,probe automatic Identification.
SVGA,PAL video output.
External video image recorder, image workstation optional.
Auto-generated report page.
Specifications:
Main Feature | Portable |
12.1〞LED |
Backlight Key |
Main Parameter | Display modes:B,B/B,4B,B+M,M. |
Gray scale:256 levels. |
Dynamic range:0~120dB adjustable. |
External LED display have 16 kinds of pseudo color. |
Permanent storage:128 images . |
Capacity cine loop:real time display 256 consecutive images which are memorized successively. |
Gain control:8 segments TGC and overall gain can be adjusted respectively. |
Frequency conversion:2.5MHz/3.0MHz/3.5MHz/4.0MHz/5.0MHz five periods of frequency conversion;frequency range applies 5.5
MHz/6.0MHz/6.5MHz/7.0MHz/7.5MHz can match high frequency probe. |
According to the user’s pattern style preference,the parameter will be set up automatically and saved,Boot default this
parameter.This default of parameter can also be modified in the menu. |
E-zoom:magnify 2 times of real time image. |
Focus position:dynamic electron focusing. |
correction,frame correlation,point correlation,line correlation,digital filtering,digital edge enhancement and pseudo color
processing, etc. |
Output Interface | 1. USB video output
2. SVGA video output
3. PAL video output |
