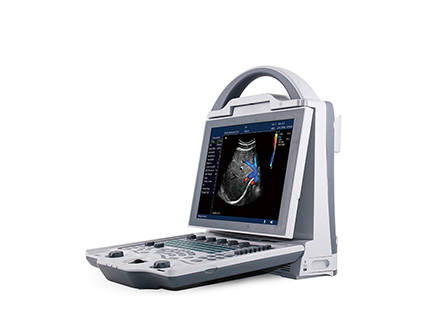

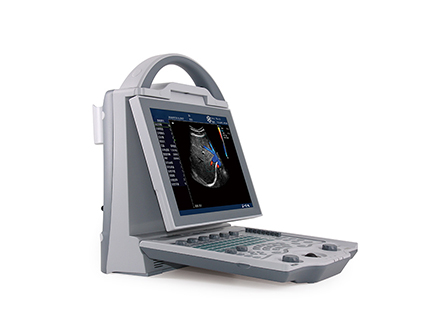

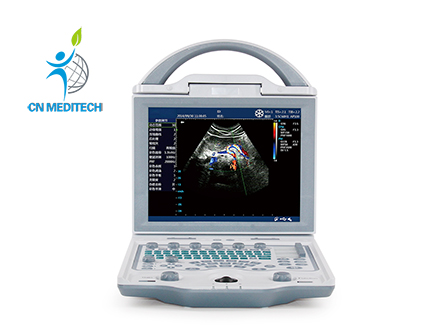

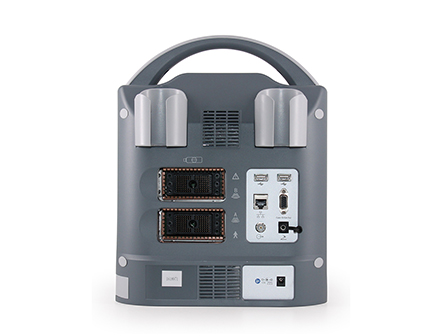

Medical Full Digital Color Doppler Pregnancy Ultrasound Scanner

Model:CNME0102C1


Application:

Applicable to diagnosis of abdominal organs(trans-vaginal included),superficial organs and cardiac,abdomen,GYN,OB, superficial organ,cardiac,peripheral vascular,urology department and orthopedic surgery.


Features:

10.4'color LED full screen display,angle adjustable.

One-key-light keyboard function for black room use.

One button operation including one-key storage image,one-key review,one-key print,etc.

Quick look up stored image function,raise working efficiency.

Multi-functional knob design,realize one-key quick adjustment in multi-mode.


Specifications:

Gray scale
256
Color scale
256
Display
10.4 " high resolution, medical dedicated LCD color display
Network Power
100-240V~1.2-6.0A
Frequency
50-60Hz
Adapter output
DC12.8V 3.0A
Power
≤100VA
Main unit size
approx. 256*150*326(mm, L*M*H)
Net weight
approx. 4.5kg(no attachments)
Operation mode
1. B,B/B,4B mode
2. M,B/M mode
3. Color flow mode(CFM)
4. Power Doppler mode(PDI)
5. Pulsed-wave Doppler(PW)
6. Tissue harmonic imaging(THI)
