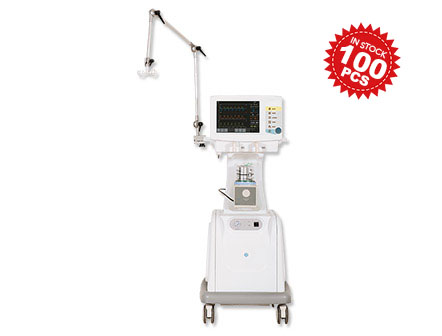

Invasive and Non-invasive Respiratory Ventilator Machine for adult/pediatric /Infant in Stock

Model: CNME010415

Features:

12.1 inch touch screen with desirable color schemes

The simplest interface boots a precise control and convenient operation

Applied for adult,pediatric and infant

Multi-mode ventilation function (VCV, SIMV,SIMV/PSV,PSV,PCV, APRV, APNEA, CPAP, BIPAP, Manual, SIGH)

Applied with Invasive ventilation and Non-invasive ventilation

Advanced air compressor for air input

Self testing and calibration function

Auto-wash for exhaust valve

Assistant Nebulization treatment

High flow oxygen remedy


Technical Data:

Technical Specification


Physical specifications

Dimensions: 45*55*140cm

Weight: 65kg

Casters: Front wheels with lock

Screen: 12.1 inch touch screen

Display: Colour LCD

Display graphic: Waveforms of P-T, F-T, V-T

Loops: P-V, F-V, F-P

Pipeline Supply

Gas configuration: O2, Air

Pipeline input range: 280-600kPa

Air compressor specifications

Power: AC 220V±10%, 50Hz±2%

Output pressure: 0.4±0.1MPa

Noise: ≤50dB

Battery Power

Battery Type: Lead-acid 12V, 4Ah

Run-time: Typical 180 mins+

Ventilator Specification


Modes of ventilation

VCV, APNEA, SIMV, SIMV/PSV, MANUAL, CPAP, PSV, PCV, BIPAP, SIGH, ARPV, NIV

Ventilator parameter

Tidal Volume range: 20-2000ml

Pressure range: 5-80 cmH2O

Rispriation Rate Range: 1-100 bpm (1-40 bpm under SIMV)

Inspiration Time: 0.2-12s

Pressure control/Pressure support: 0-80cmH2O

Inspiration plateau: OFF, 1-50%

SIGH: OFF, 1-5/100

Oxygen concentration: 21%-100%

Ptrigger Range: -20-0cmH2O

Ftrigger Range: 0.5-30s

PEEP

Type: Integrated, Electronic control

Range: OFF, 3-40cmH2O

Parameter monitoring

Vti, Vte, Ppeak, Pmean, Pplateau, PEEP, NIF, FlowlMax, FlowEMax, FrepT, FrepSp, FrepM, MVsp, MVleak, Vtrdeep, Ptrideep, RVR(RSBI), Ri, Rex, Cs, Cdyn, WOB, RCexp, FiO2, CO2(Optional).

Alarm Limits

Visual: No tidal volume, MV, Paw, FiO2 limitationO2, Air failure, AC power failure, backup low

Audio: No tidal volume, MV, Paw, FiO2 limitation

Pre-setting functions

Language: ENGLISH

Self-test: AUTOMATIC

Typical function

Auxiliary Suction function: Optional

O2 remedy: Up to 60L/min

Nebulization

Environment Conditions

Operating Temp: 5°C~40 °C

Storage Temp: - 10°C~ +40°C

Humidity: ≤80 %

Atmosphere pressure: 960 hPa~1040 hPa
