Model:CNME0104V1
Description:
It provides the physician with a flexible, simple and easy-to-use ventilator for closed circuit AND semi-close circuit. All the selected patient parameters are clearly visible on large,bright LCD displays. The audio-visual alarm system contains improved alarm features - including alarm mute.

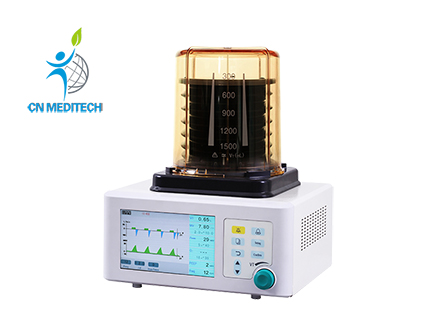

CNME0104V1 is an advanced,yet easy-to-use anesthesia ventilator.
Features:
●Provide A/C ventilation to the patient in the process of operation or in recovery after the operation.
●Applied for animals.
●Microprocessor controlled ,integrated anesthetic ventilation system.
●7 inch TFT display screen.
●Good air tightness, high reliability.
Specifications:
| Dimensions | 43cm*38cm*49cm |
| Weight | 10kg |
| Working type | Electronically controlled, pneumatic driven |
| Ventilation mode | IPPV, SIMV, MANUAL(BAG) |
| Tidal volume | 40-1500ml |
| I:E ratio | 4:1-1:8 |
| Adjustment range | 1-100bpm |
| Under IPPV and Manual mode | 4-65bpm |
| Under SIMV | 1-40bpm |
| Monitoring | VT, MV, BPM, Paw, FiO2, PEEP, Respiratory Frequency, I:E ratio, Ppeak |
